Product Description
The SN74HC08N is a 14-pin DIP (Dual In-Line Package) logic gate IC, belonging to the 74HC family of logic ICs. This active, lead-free, and RoHS3 compliant IC is designed to operate within a wide supply voltage range of 2V to 6V, making it suitable for various applications.
Product Features
Logic Function: The SN74HC08N is a 4-input AND gate IC, which means it performs a logical AND operation on the input signals and outputs a high-level signal only if all the inputs are high.
Supply Voltage: The IC operates on a single 5V supply voltage, with a maximum supply voltage of 6V and a minimum supply voltage of 2V.
Operating Temperature: The IC can operate within a temperature range of -40°C to 85°C, making it suitable for use in a wide range of applications.
Propagation Delay: The IC has a propagation delay of 21 ns, which is relatively fast for a logic gate IC.
Quiescent Current: The IC has a quiescent current of 2μA, which is very low and makes it suitable for battery-powered applications.
Product Applications
Primary Applications: The SN74HC08N is commonly used in digital logic circuits, such as digital clocks, calculators, and other electronic devices that require logical operations.
Secondary Applications: The IC can also be used in other applications such as data processing, control systems, and communication systems.
Product Description
| Type | Description |
| ANSC PART# | ANSC- SN74HC08N |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74HC |
| Packaging | Tube |
| Part Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Input Logic Level - Low | 0.5V ~ 1.8V |
| Input Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | 74HC08 |

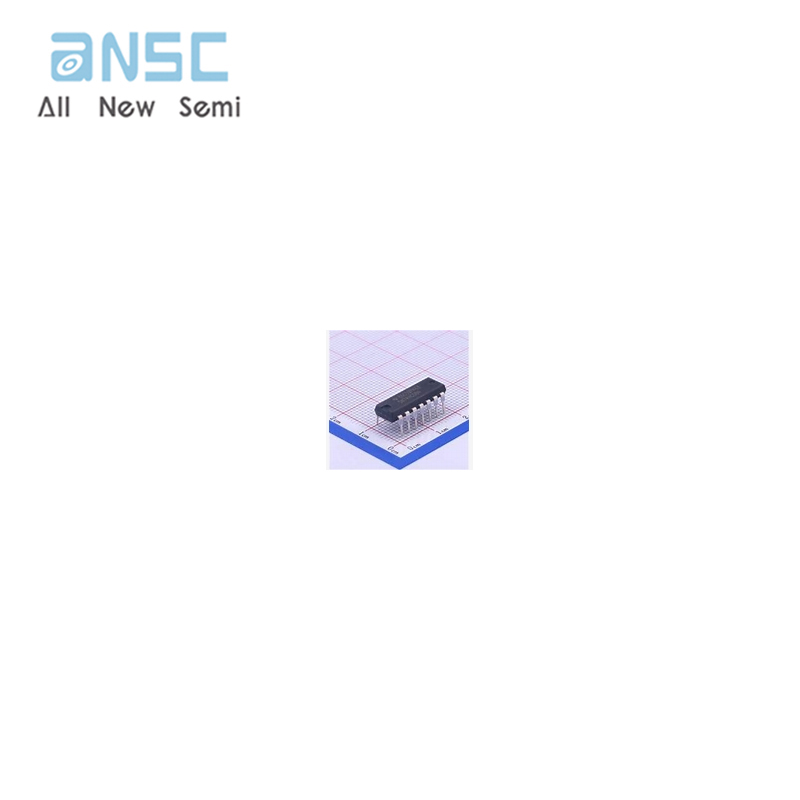

Actual image of the product
