Product Description: STM809SWX6F Simple Reset/Power-On Reset IC

The STM809SWX6F is a simple reset/power-on reset IC . This surface-mount device is part of the PMIC (Power Management Integrated Circuit) category, specifically in the subcategory of supervisors. It is engineered to provide a reliable and efficient reset function for various electronic systems, ensuring proper initialization and operation under different power conditions.

Product Features

· Low Power Consumption: The IC operates at an extremely low supply current of 15 μA, making it ideal for battery-powered devices.

· Wide Operating Voltage Range: It supports a nominal input voltage of 7V and can operate within a supply voltage range of 1V to 5.5V.

· High Reset Threshold Accuracy: The reset threshold voltage is precisely set at 2.96V (max) and 2.89V (min), ensuring reliable operation.

· Compact Design: Available in a small SOT-23-3 package with dimensions of 3.04mm x 1.4mm x 1.02mm, it occupies minimal board space.

· Lead-Free and RoHS Compliant: Manufactured using lead-free materials and compliant with ROHS3 standards, ensuring environmental safety.

· Industrial Grade: Designed for industrial-grade usage with an operating temperature range of -40°C to 85°C.

Product Applications

Primary Applications:

Industrial Control Systems: Provides reliable resets in industrial control systems where power fluctuations are common.

Automotive Electronics: Ensures proper system initialization in automotive electronics under varying power conditions.

Medical Devices: Used in medical devices requiring precise power management and reset functions.

Secondary Applications:

Consumer Electronics: Suitable for consumer electronics such as smart home devices or wearables.

Aerospace & Defense: Utilized in aerospace and defense applications where reliability and low power consumption are crucial.

Product Description

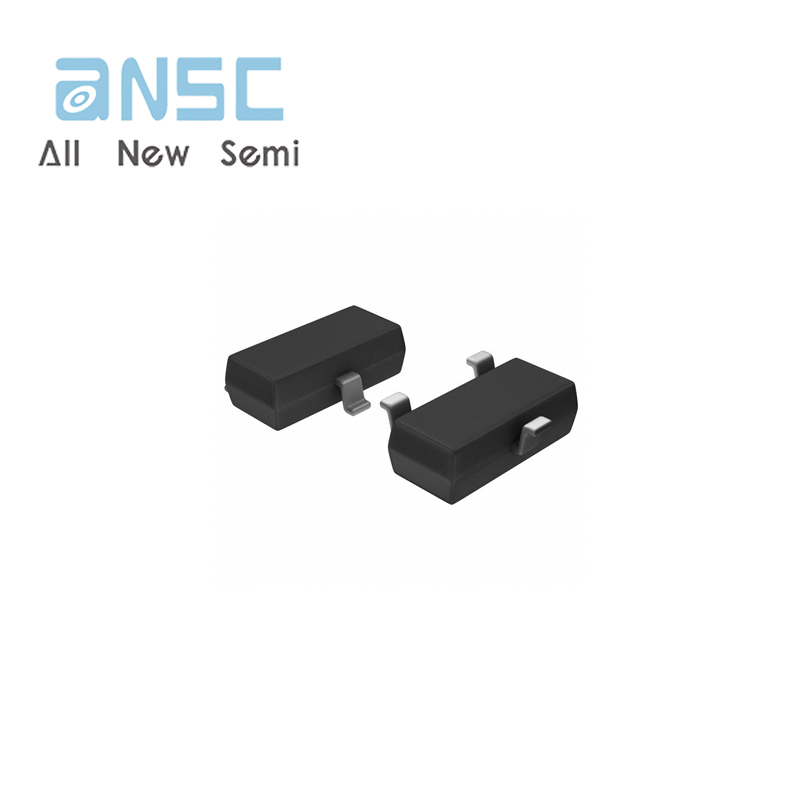

Actual image of the product
