Description

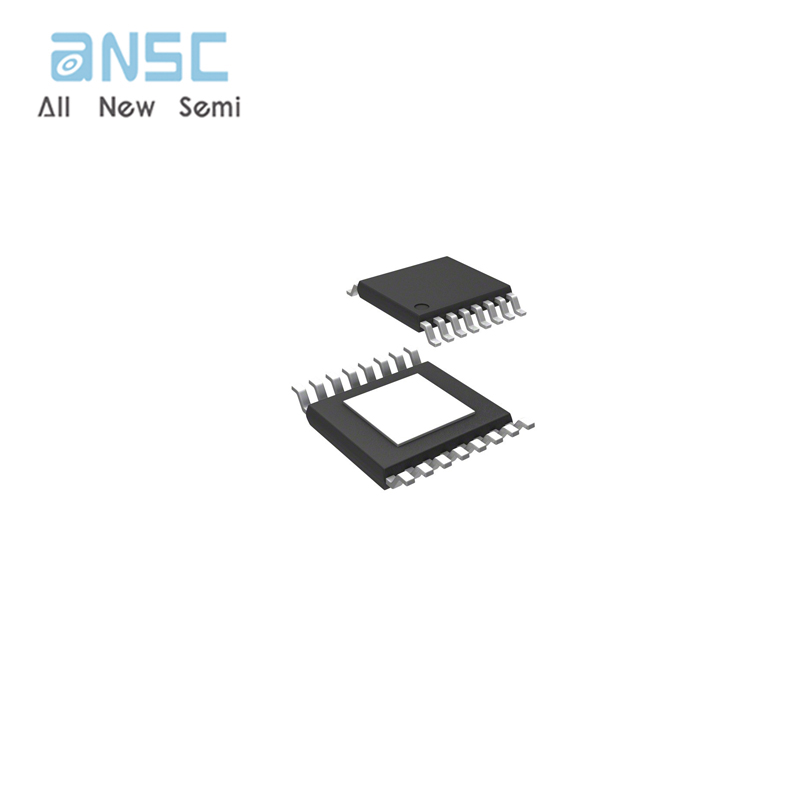

The TPS2H160AQPWPRQ1 is a high-performance, general-purpose power distribution switch , designed for automotive applications. This 16-pin PowerTSSOP packaged IC is a part of the TPS2H160 series, offering a robust and reliable solution for power management in various automotive systems.
Product Features
Built-in protections against transient, overcurrent, thermal, and under-voltage conditions
Adjustable current limiting and over-temperature fault protection
Status flag for monitoring the switch's state
High-side output configuration with a source output current flow direction
Nominal input voltage of 40V and a supply voltage range of 4V to 13.5V
Operating temperature range of -40°C to 125°C
Low Rds(on) of 155mΩ and a high output current limit of 2.5A
RoHS3 compliant and lead-free
Product Applications
Primary applications: Automotive power distribution systems, battery management systems, and load switching applications
Secondary applications: Industrial power supplies, medical devices, and consumer electronics
Product Description
| Type | Description |
| ANSC PART# | ANSC- TPS2H160AQPWPRQ1 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:01 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 3.4V ~ 40V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2.5A |
| Rds On (Typ) | 155mOhm |
| Input Type | - |
| Features | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-HTSSOP |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Base Product Number | TPS2H160 |
