Product Description

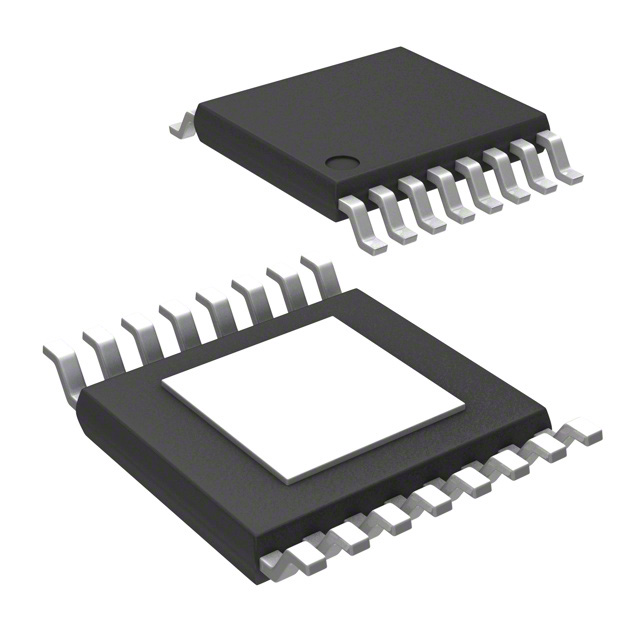

The TPS7B7702QPWPRQ1 is a high-performance, 2-channel, 16-pin PowerTSSOP surface-mount linear voltage regulator . This IC is designed to provide a stable output voltage of 20V with a high accuracy of 2% and a low dropout voltage of 500mV. It features a quiescent current of 1mA and a peak current limit of 340mA.
Product Features
· High accuracy of 2%
· Low dropout voltage of 500mV
· Quiescent current of 1mA
· Peak current limit of 340mA
· Operating temperature range of -40°C to 150°C
· 16-pin PowerTSSOP package with a height of 1.2mm and a width of 4.4mm
· Surface-mount package with a terminal finish of Nickel/Palladium/Gold (Ni/Pd/Au)
· RoHS3 compliant and lead-free
· AEC-Q100 qualified for automotive applications
Product Applications
· Primary applications: Automotive systems, industrial control systems, and medical devices
· Secondary applications: Consumer electronics, telecommunications equipment, and aerospace systems
Product Description
| Type | Description |
| ANSC PART# | ANSC- TPS7B7702QPWPRQ1 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | 20V |
| Voltage Dropout (Max) | 0.5V @ 100mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 1 mA |
| PSRR | 73dB (100Hz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 150°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-HTSSOP |
| Base Product Number | TPS7B7702 |
