Product Description
The TPS929120QPWPRQ1 is a high-performance, serial LED display driver, designed to operate in automotive temperature grade. This PMIC (Power Management IC) is specifically tailored to drive LED displays with up to 36 segments and 24 terminations. The device features a single function and is optimized for use in a wide range of applications, including automotive, industrial, and consumer electronics.
Product Features
Serial interface for easy integration and configuration
LED display driver with up to 36 segments and 24 terminations
Operating temperature range of -40°C to 125°C, suitable for automotive applications
Supply voltage range of 4.5V to 40V, providing flexibility in system design
Nickel/Palladium/Gold (Ni/Pd/Au) terminal finish for reliable connections
Gull wing terminal form and dual terminal position for easy mounting
Frequency response up to 0.0011 MHz
Product Applications
Primary applications: Automotive instrument clusters, infotainment systems, and other display applications requiring high reliability and performance.
Secondary applications: Industrial control systems, medical devices, and consumer electronics requiring LED displays.
Product Description
ANSC PART# | ANSC- TPS929120QPWPRQ1 |
Part# | TPS929120QPWPRQ1 |
Type： | Integrated Circuits |
Manufactor | Original |
DC | new |
Part Status | Active |

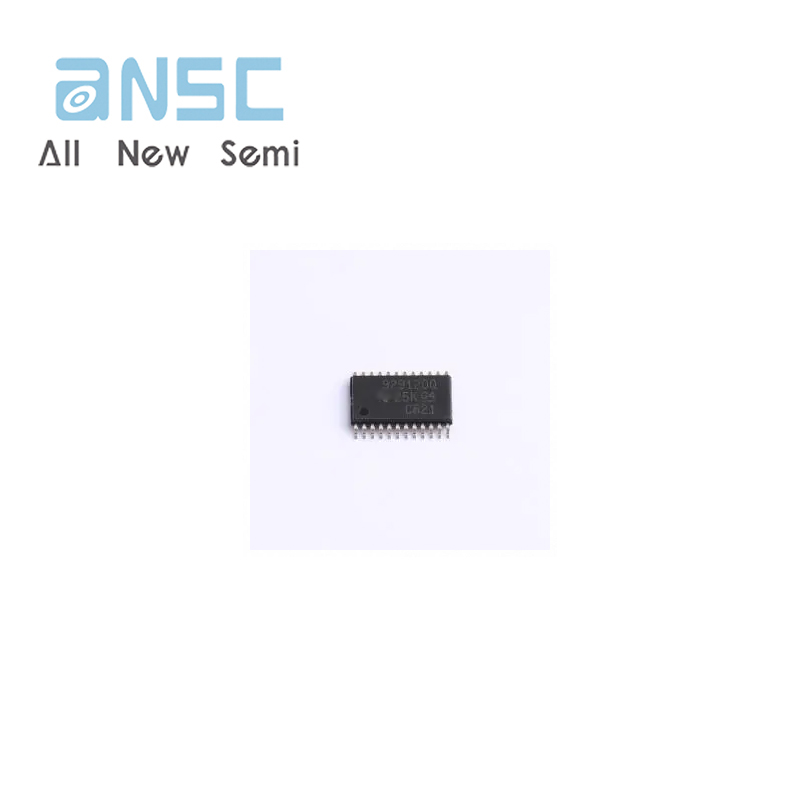

Actual image of the product
Product Attributes
Type | Description |
Category | Integrated Circuits (ICs) Power Management (PMIC) LED Drivers |
Manufacturer | - |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Type | DC DC Regulator |
Topology | Step-Down (Buck), Step-Up (Boost) |
Internal Switch(s) | Yes |
Number of Outputs | 12 |
Voltage - Supply (Min) | 4.5V |
Voltage - Supply (Max) | 40V |
Voltage - Output | 4.75V ~ 5.25V |
Current - Output / Channel | - |
Frequency | 10kHz ~ 2MHz |
Dimming | PWM |
Applications | - |
Operating Temperature | -40°C ~ 125°C (TA) |
Grade | Automotive |
Qualification | AEC-Q100 |
Mounting Type | Surface Mount |
Package / Case | 24-PowerTSSOP (0.173", 4.40mm Width) |
Supplier Device Package | 24-HTSSOP |
Base Product Number | TPS929120 |
