Product Description

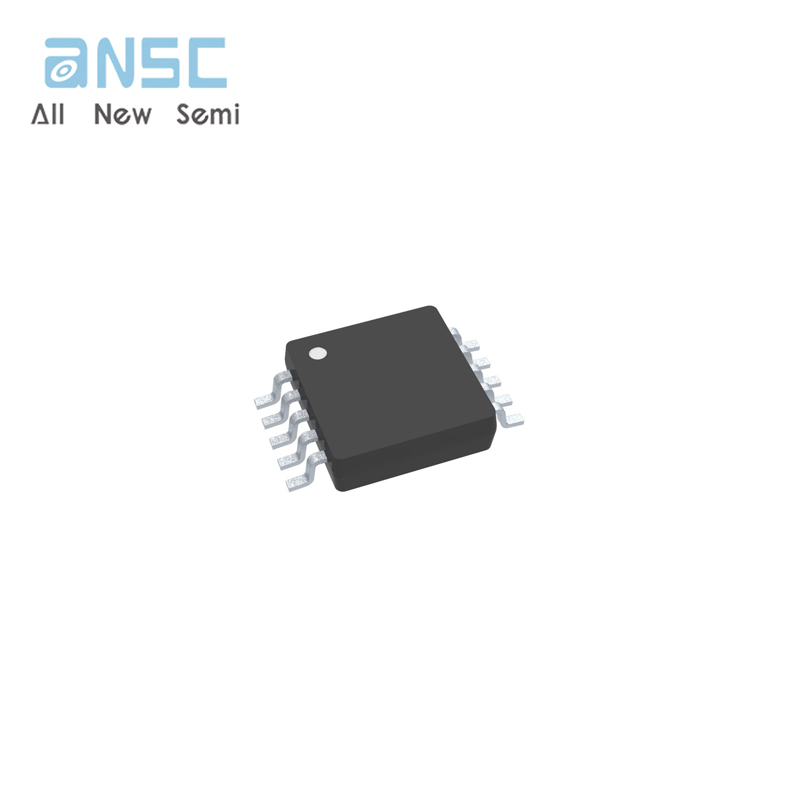

The TS3A24159DGSR is a 2:1 analog switch, designed for high-performance applications. This surface-mount device is part of the TS3A24159 family and features a 10-pin, 10-TFSOP package.
Product Features
High-Speed Switching: The TS3A24159DGSR operates at a bandwidth of 23MHz, making it suitable for high-frequency applications.
Low Power Consumption: With an operating supply current of 15nA and a maximum supply current of 100nA, this device is designed for low-power systems.
Low On-State Resistance: The on-state resistance is 300mOhm, ensuring minimal signal attenuation and distortion.
High Isolation: The off-state isolation is 73dB, providing excellent signal isolation between channels.
Fast Switching Times: The switch-on and switch-off times are 35ns and 25ns, respectively, allowing for fast switching and minimal delay.
Product Applications
Primary Applications:
High-speed data acquisition systems
Audio and video signal processing
Medical devices
Industrial control systems
Secondary Applications:
Telecommunications equipment
Automotive electronics
Aerospace and defense systems
Product Description
| Type | Description |
| ANSC PART# | ANSC- TS3A24159DGSR |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:01 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 300mOhm |
| Channel-to-Channel Matching (ΔRon) | 10mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 35ns, 25ns |
| -3db Bandwidth | 23MHz |
| Charge Injection | 9pC |
| Channel Capacitance (CS(off), CD(off)) | 90pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -96dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Base Product Number | TS3A24159 |
