Product Description
The UCC21530DWK is a high-performance, half-bridge gate driver , designed for use with IGBTs, N-channel, and P-channel MOSFETs. This surface-mount device is part of the PMIC - Gate Drivers category and is built with robust protections against transient and under-voltage conditions. The driver configuration is optimized for independent channel operation, making it suitable for a wide range of applications.
Product Features
Built-in protections against transient and under-voltage conditions
Independent channel operation for flexible configuration
Peak output current of 4A (source) and 6A (sink)
Driver configuration for half-bridge operation
Compatible with IGBTs, N-channel, and P-channel MOSFETs
Input type is CMOS/TTL for easy integration with microcontrollers
Interface IC type is a buffer or inverter-based peripheral driver
Operating temperature range of -40°C to 130°C (TJ)
RoHS3 compliant and Pb-free
Product Applications
Primary applications:
Motor control systems
Power conversion systems
Power supplies
Secondary applications:
Audio amplifiers
Lighting control systems
Industrial automation systems
Product Description
| Type | Description |
| ANSC PART# | ANSC- UCC21530DWK |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Manufacturer | - |
| Series | - |
| Packaging | Tube |
| Part Status | Last Time Buy |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 3V ~ 18V |
| Logic Voltage - VIL, VIH | 1.2V, 1.6V |
| Current - Peak Output (Source, Sink) | 4A, 6A |
| Input Type | CMOS/TTL |
| Rise / Fall Time (Typ) | 6ns, 7ns |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | UCC21530 |

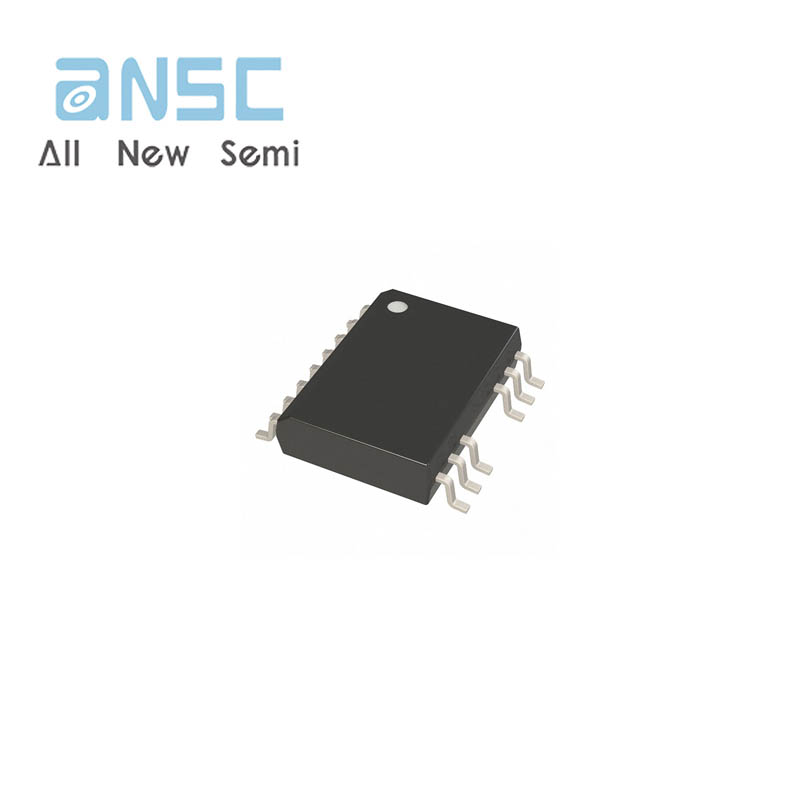

Actual image of the product
