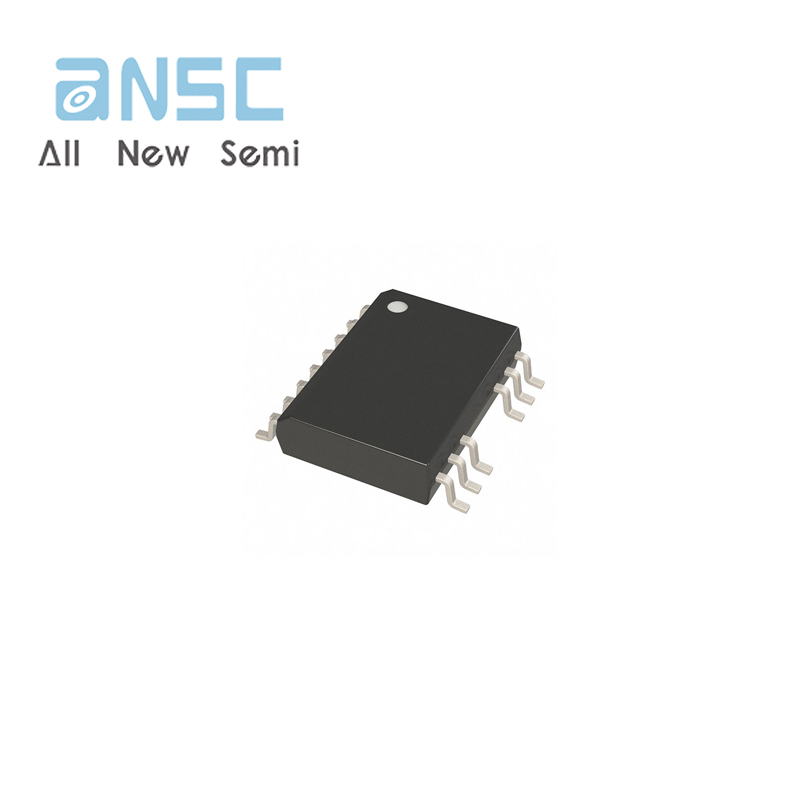

Product Description: UCC21530QDWKQ1 Gate Driver IC
The UCC21530QDWKQ1 is an advanced gate driver IC , specifically tailored for automotive applications. This IC is part of the UCC21530 series and is compliant with the AEC-Q100 standard, ensuring its reliability and performance in harsh automotive environments.
Description
The UCC21530QDWKQ1 is a half-bridge gate driver IC that supports both IGBT and N-Channel/P-Channel MOSFET gate types. It features two independent drivers, each capable of handling peak output currents of up to 4A (source) and 6A (sink). This IC is designed to operate within a wide supply voltage range of 3V to 18V, making it versatile for various automotive applications.
Product Features
High Speed: The IC boasts a rise/fall time of 6ns and 7ns respectively, ensuring fast switching times.
Built-in Protections: It includes transient and under-voltage protections to safeguard the IC during power surges or voltage drops.
Logic Compatibility: Compatible with CMOS/TTL input logic, making it easy to integrate with various microcontrollers.
Surface Mount: The IC is available in a 14-SOIC package with nickel/palladium/gold terminals, facilitating surface mount technology (SMT) assembly.
Temperature Range: Operates within an extended temperature range of -40°C to 130°C TJ, suitable for automotive applications.
Product Applications
Primary Applications: 1. Electric Vehicle (EV) Systems: The UCC21530QDWKQ1 can be used in EV systems to control high-power IGBTs or MOSFETs efficiently. 2. Automotive Power Electronics: It is ideal for controlling power electronic devices such as DC-DC converters, motor drives, and power supplies in vehicles.
Secondary Applications: 1. Industrial Automation: The IC's high-speed performance and robust protection features make it suitable for industrial automation applications where reliability is crucial. 2. Renewable Energy Systems: It can be used in solar inverters and wind turbines to control high-power semiconductor devices efficiently.
Product Description
| Type | Description |
| ANSC PART# | ANSC- UCC21530QDWKQ1 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Manufacturer | - |
| Series | - |
| Packaging | Tube |
| Part Status | Last Time Buy |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 3V ~ 18V |
| Logic Voltage - VIL, VIH | 1.2V, 1.6V |
| Current - Peak Output (Source, Sink) | 4A, 6A |
| Input Type | CMOS/TTL |
| Rise / Fall Time (Typ) | 6ns, 7ns |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 14-SOIC |
| Base Product Number | UCC21530 |
