Product details
The ULN2803AN is a Darlington Transistor Array. It is a high-voltage, high-current Darlington transistor array that can be used to drive a variety of loads. It is designed to provide a low-cost, easy-to-use solution for driving high-current loads from low-voltage logic circuits.
Product Features
• High-voltage, high-current Darlington transistor array
• Low-cost, easy-to-use solution for driving high-current loads from low-voltage logic circuits
• Eight NPN Darlington pairs with common emitters
• Output current of 500mA (single output)
• Output voltage of 50V
• Inputs compatible with TTL and CMOS logic
• Internal clamp diodes for inductive loads
• High-noise immunity
Product Applications
The ULN2803AN is suitable for a wide range of applications, including motor control, relay drivers, lamp drivers, and other high-current loads. It is also suitable for use in automotive, industrial, and consumer applications.
Product Description
| Type | Description |
| ANSC PART# | ANSC- ULN2803AN |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | - |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 18-PDIP |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Base Product Number | ULN2803 |

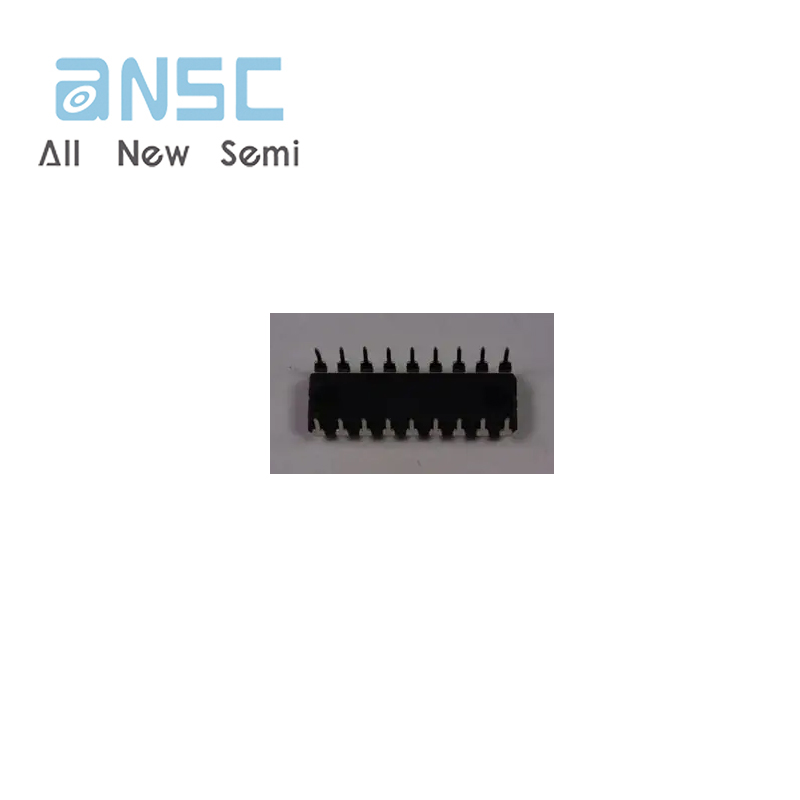

Actual image of the product
