Product Descriptions

The MAX6338 quad voltage monitor is capable of monitoring up to four supplies without any external components. A variety of factory-trimmed threshold voltages and supply tolerances are available to optimize the MAX6338 for specific applications. The selection includes input options for monitoring +5.0V, +3.3V, +3.0V, +2.5V, +1.8V, and -5.0V voltages. An additional high-input impedance comparator option can be used as an adjustable voltage monitor, general-purpose comparator, or digital level translator.

Each of the monitored voltages is available with trip thresholds to support power-supply tolerances of either 5 PERCENT or 10 PERCENT below the nominal voltage. An internal bandgap reference ensures accurate trip thresholds across the extended (-40°C to +85°C) operating temperature range.

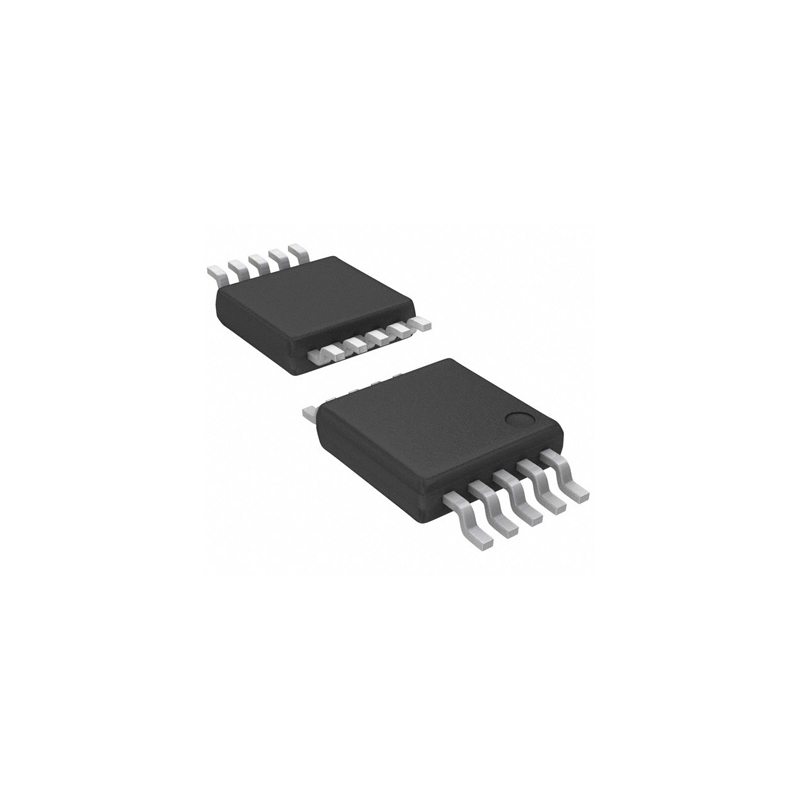

The MAX6338 consumes 25µA (typ) supply current and operates with supply voltages from +2.5V to +5.5V. An internal undervoltage lockout circuit forces all four digital outputs low when VCC drops below the minimum operating voltage. The four digital outputs all have weak internal pull-ups to VCC, allowing wire-ORed connection. Each input threshold voltage has an independent output. The MAX6338 is available in a 10-pin µMAX® package.

Product Features

♦ Monitors Four Voltages (Factory Programmed or User Adjustable)

+5.0V, +3.3V, +3.0V, +2.5V, +1.8V, -5.0V (nominal) or User-Adjustable Settings

♦ Low 25µA Supply Current

♦ Four Independent, Open-Drain, Active-Low Outputs

♦ +2.5V to +5.5V Supply Voltage Range

♦ Guaranteed from -40°C to +85°C

♦ No External Components Required

♦ Small 10-Pin µMAX Package

Product Applications

Telecommunications

High-End Printers

Desktop and Notebook Computers

Data Storage Equipment

Networking Equipment

Industrial Equipment

Set-Top Boxes
