Product Descriptions

The MC74AC139/74ACT139 is a high−speed, dual 1−of−4 decoder/demultiplexer. The device has two independent decoders, each accepting two inputs and providing four mutually−exclusive active−LOW outputs. Each decoder has an active−LOW Enable input which can be used as a data input for a 4−output demultiplexer. Each half of the MC74AC139/74ACT139 can be used as a function generator providing four minterms of two variables.

Product Features

• Multifunctional Capability

• Two Completely Independent 1−of−4 Decoders

• Active LOW Mutually Exclusive Outputs

• Outputs Source/Sink 24 mA

• ′ACT139 Has TTL Compatible Inputs

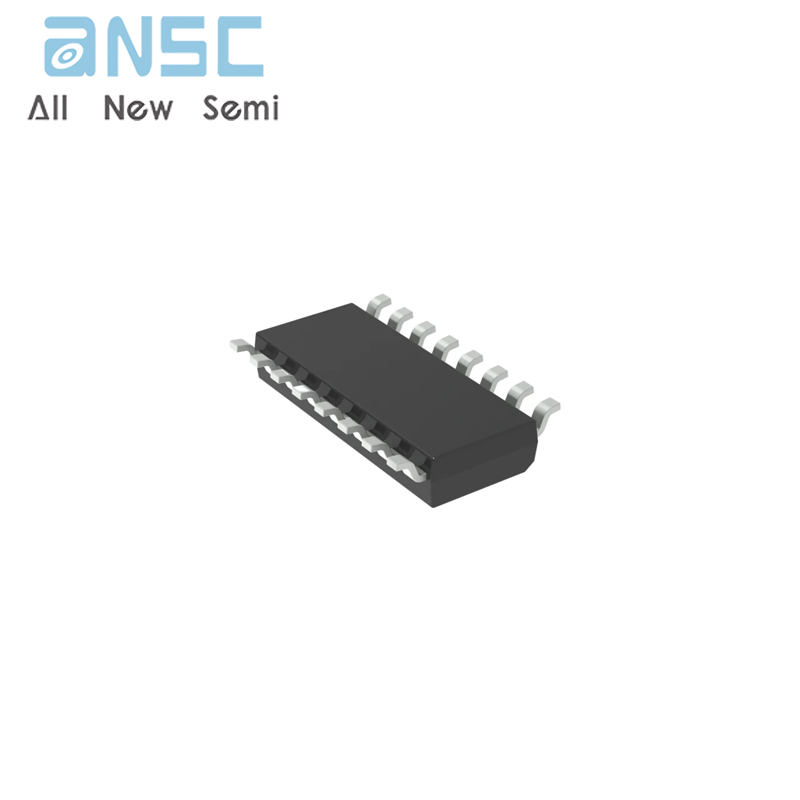

Product Photos

For more product information, please download the PDF
