Product Descriptions
The DS1631, DS1631A, and DS1731 digital thermometers provide 9, 10, 11, or 12-bit temperature readings over a -55°C to +125°C range. The DS1631 and DS1631A thermometer accuracy is ±0.5°C from 0°C to +70°C with 3.0V ≤ VDD ≤ 5.5V, and the DS1731 accuracy is ±1°C from -10°C to +85°C with 3.0V ≤ VDD ≤ 5.5V. The thermostat on all three devices provides custom hysteresis with user-defined trip points (TH and TL). The TH and TL registers and thermometer configuration settings are stored in NV EEPROM so they can be programmed prior to installation. In addition, the DS1631A automatically begins taking temperature measurements at power-up, which allows it to function as a stand-alone thermostat.
Product Features
● Maximize System Accuracy in Broad Range of Thermal Management Applications
• Operating Temperature Range: -55°C to +125°C (-67°F to +257°F)
• DS1631 and DS1631A: ±0.5°C Accuracy over 0°C to +70°C Range
• DS1731: ±1°C Accuracy over a -10°C to +85°C Range
• User-Selectable Output Resolution from 9 Bits to 12 Bits
● Reduce Cost with No External Components
● Simplify Distributed Temperature-Sensing Applications with Multidrop Capability
• Up to Eight Devices Can Operate on a 2-Wire Bus
● Flexible and Nonvolatile User-Defined Thermostatic Modes with Custom Hysteresis
● Available in 8-Pin µSOP and SO (DS1631 and DS1631A Only) and the 8-Pin DIP (DS1631 Only) Packages
Product Applications
● Network Routers and Switches
● Cellular Base Stations
● Portable Products
● Any Space-Constrained Thermally Sensitive Product
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DS1631Z |
| Category | Sensors, Transducers |
| Temperature Sensors | |
| Analog and Digital Output | |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Sensor Type | Digital, Local |
| Sensing Temperature - Local | -55°C ~ 125°C |
| Sensing Temperature - Remote | - |
| Output Type | I2C |
| Voltage - Supply | 2.7V ~ 5.5V |
| Resolution | 11 b |
| Features | One-Shot, Output Switch, Programmable Limit, Programmable Resolution, Standby Mode |
| Accuracy - Highest (Lowest) | ±0.5°C (±2°C) |
| Test Condition | 0°C ~ 70°C (-55°C ~ 125°C) |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | DS1631 |

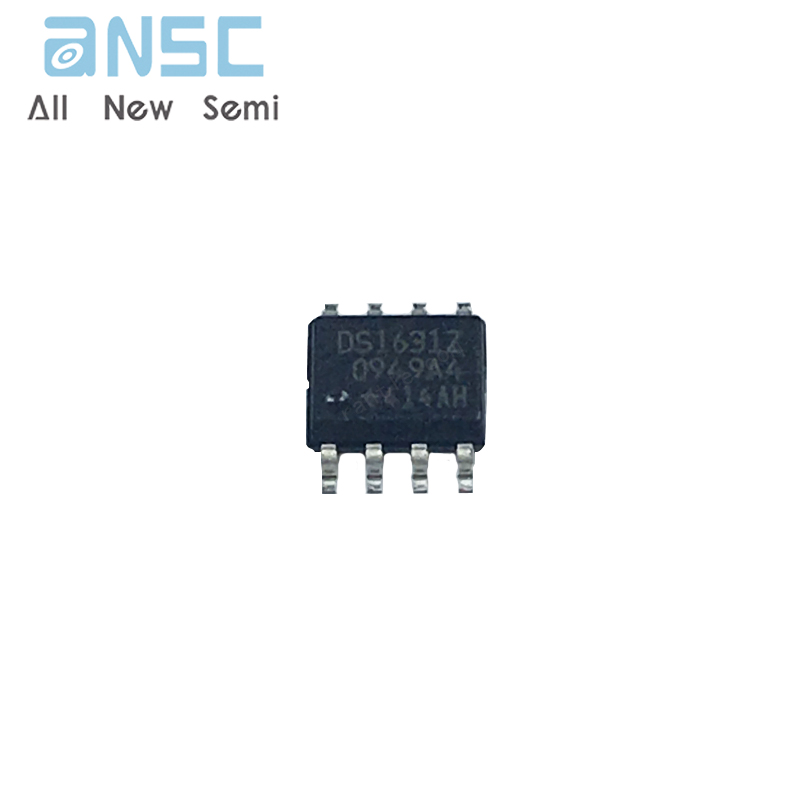

Product Photos
