Product Descriptions

The 74AC32 is an advanced high-speed CMOS QUAD 2-INPUT OR GATE fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS tecnology.

The internal circuit is composed of 2 stages including buffer output, which enables high noise immunity and stable output.

All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.

Product Features

■ HIGH SPEED: tPD = 4ns (TYP.) at VCC = 5V

■ LOW POWER DISSIPATION:

ICC = 2µA(MAX.) at TA=25°C

■ HIGH NOISE IMMUNITY:

VNIH = VNIL = 28 % VCC (MIN.)

■ 50Ω TRANSMISSION LINE DRIVING CAPABILITY

■ SYMMETRICAL OUTPUT IMPEDANCE:

|IOH|=IOL = 24mA (MIN)

■ BALANCED PROPAGATION DELAYS:

tPLH ≅ tPHL

■ OPERATING VOLTAGE RANGE:

VCC (OPR) = 2V to 6V

■ PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 32

■ IMPROVED LATCH-UP IMMUNITY

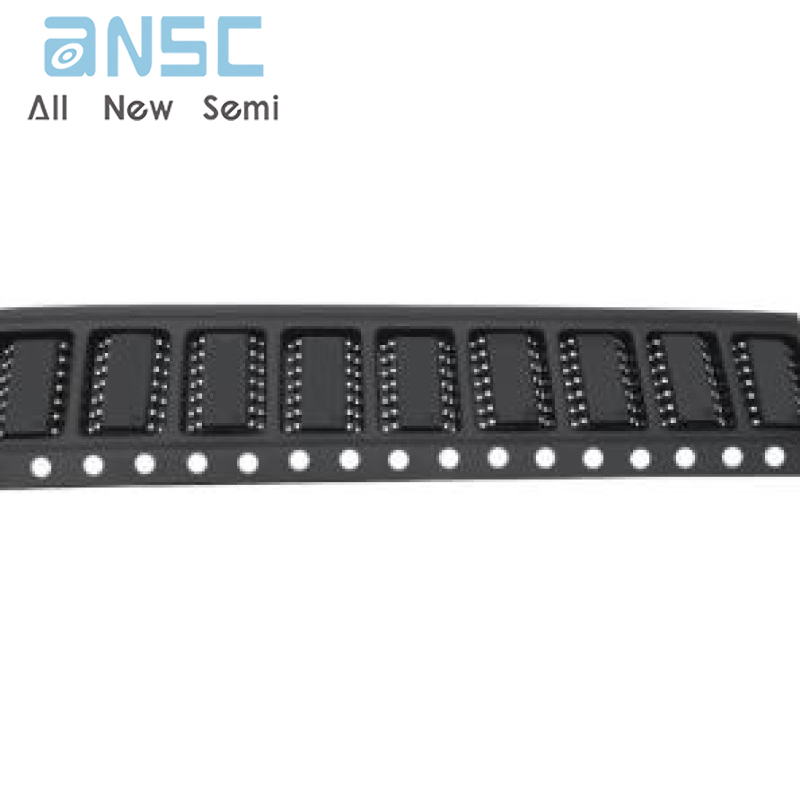

Product Photos
