Product Descriptions
The CD4001BC and CD4011BC quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B series output drive. The devices also have buffered outputs which improve transfer characteristics by providing very high gain.
All inputs are protected against static discharge with diodes to VDD and VSS.
Product Features
■ Low power TTL:
Fan out of 2 driving 74L compatibility: or 1 driving 74LS
■ 5V–10V–15V parametric ratings
■ Symmetrical output characteristics
■ Maximum input leakage 1 µA at 15V over full temperature range
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD74AC139M |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Manufacturer | Harris Corporation |
| Series | 74AC |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Decoder/Demultiplexer |
| Circuit | 1 x 2:4 |
| Independent Circuits | 2 |
| Current - Output High, Low | 24mA, 24mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 1.5V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | 74AC139 |

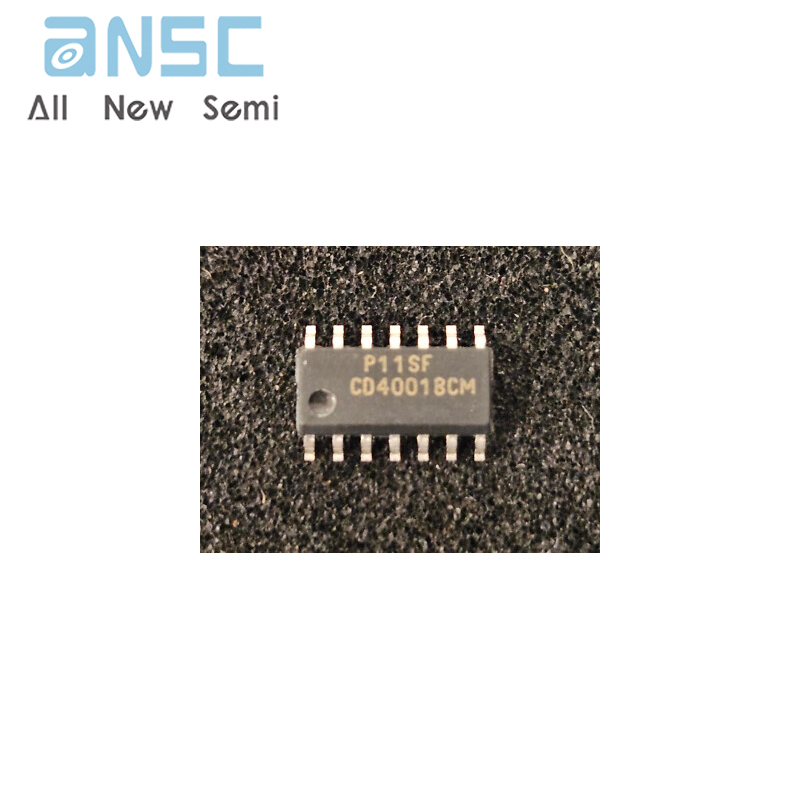

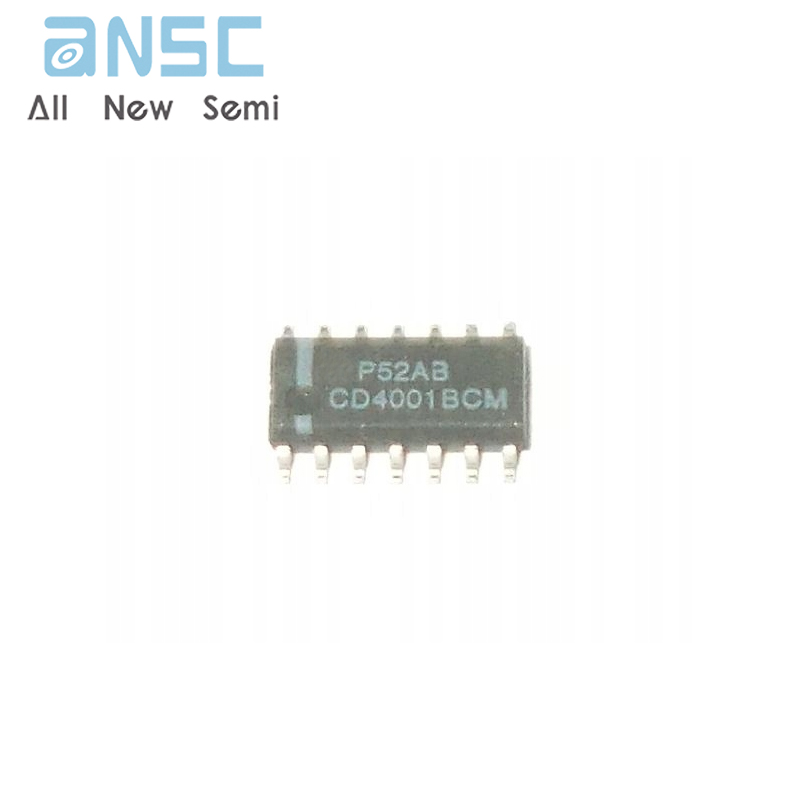

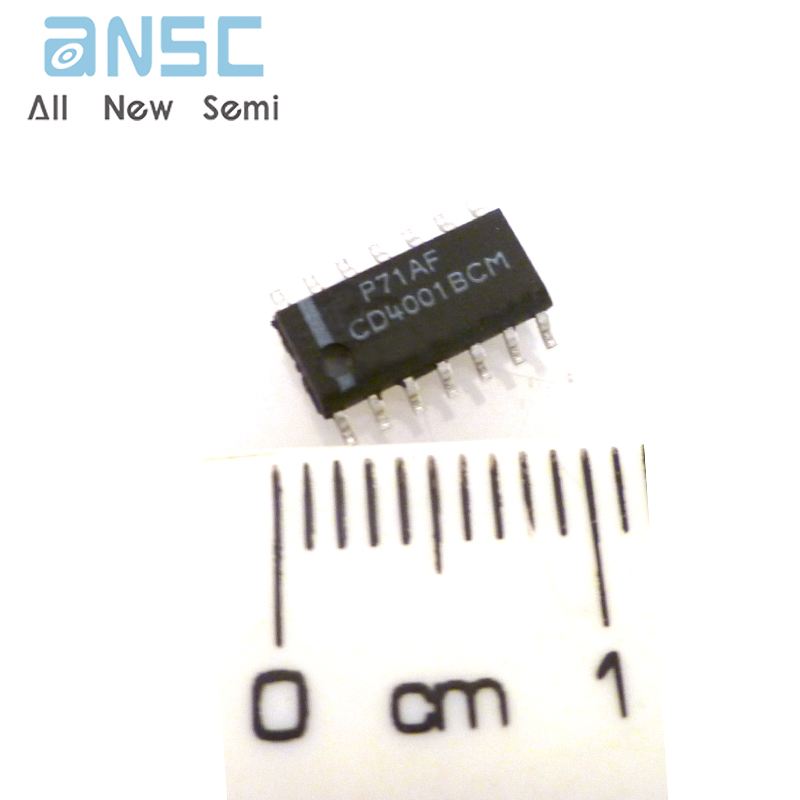

Product Photos
For more product information, please download the PDF
