Product Features

The TC74AC574 is an advanced high speed CMOS OCTALFLIP - FLOP fabricated with silicon gate and double - layermetal wiring C2MOS technology.

It achieves the high speed operation similar to equivalentBipolar Schottky TTL while maintaining the CMOS lowpower dissipation.

These 8- bit D - type flip - flops are controlled by a clock input(CK) and a output enable input (OE).

When the OE input is high, the eight outputs are in a highimpedance state.

All inputs are equipped with protection circuits against staticdischarge or transient excess voltage.

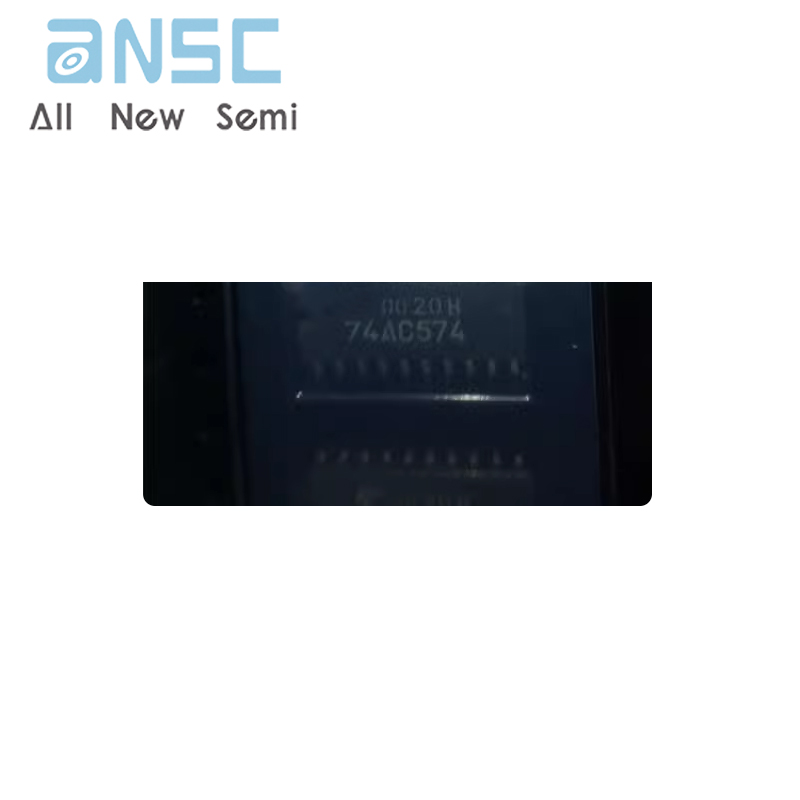

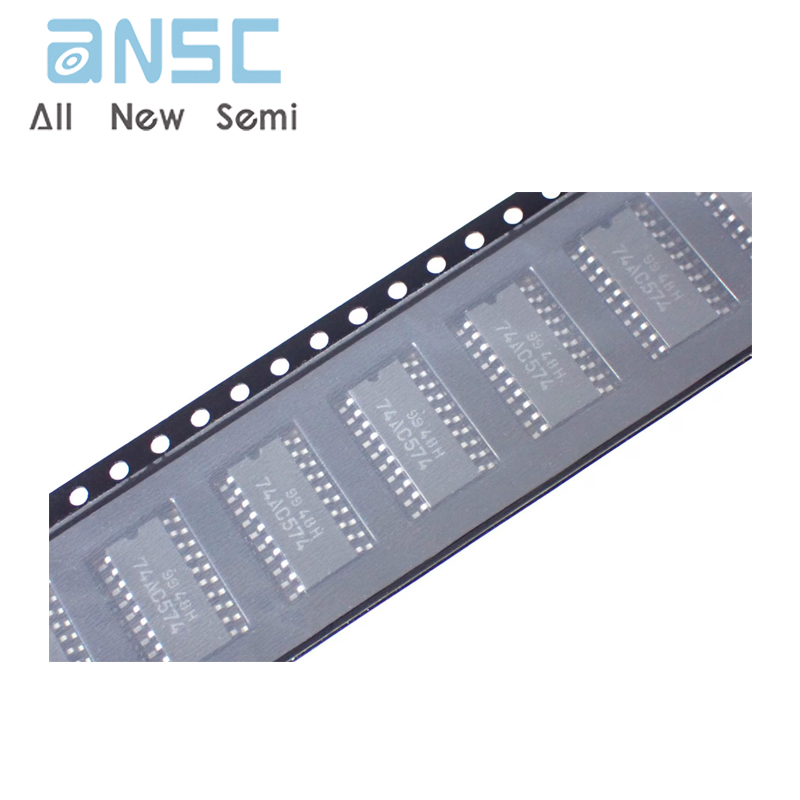

Product Photos

For more product information, please download the PDF
