Product Descriptions

The Spartan® and the Spartan-XL FPGA families are a high-volume production FPGA solution that delivers all the key requirements for ASIC replacement up to 40,000 gates. These requirements include high performance, on-chip RAM, core solutions and prices that, in high volume, approach and in many cases are equivalent to mask programmed ASIC devices.

By streamlining the Spartan series feature set, leveraging advanced process technologies and focusing on total cost management, the Spartan series delivers the key features required by ASIC and other high-volume logic users while avoiding the initial cost, long development cycles and inherent risk of conventional ASICs.

Product Features

• First ASIC replacement FPGA for high-volume production with on-chip RAM

• Density up to 1862 logic cells or 40,000 system gates

• Streamlined feature set based on XC4000 architecture

• System performance beyond 80 MHz

• Broad set of AllianceCORE and LogiCORE™ predefined solutions available

• Unlimited reprogrammability

• Low cost

• System level features

- Available in both 5V and 3.3V versions

- On-chip SelectRAM™ memory

- Fully PCI compliant

- Full readback capability for program verification and internal node observability

- Dedicated high-speed carry logic

- Internal 3-state bus capability

- Eight global low-skew clock or signal networks

- IEEE 1149.1-compatible Boundary Scan logic

- Low cost plastic packages available in all densities

- Footprint compatibility in common packages

• Fully supported by powerful Xilinx ISE® Classics development system

- Fully automatic mapping, placement and routing

Product Specification

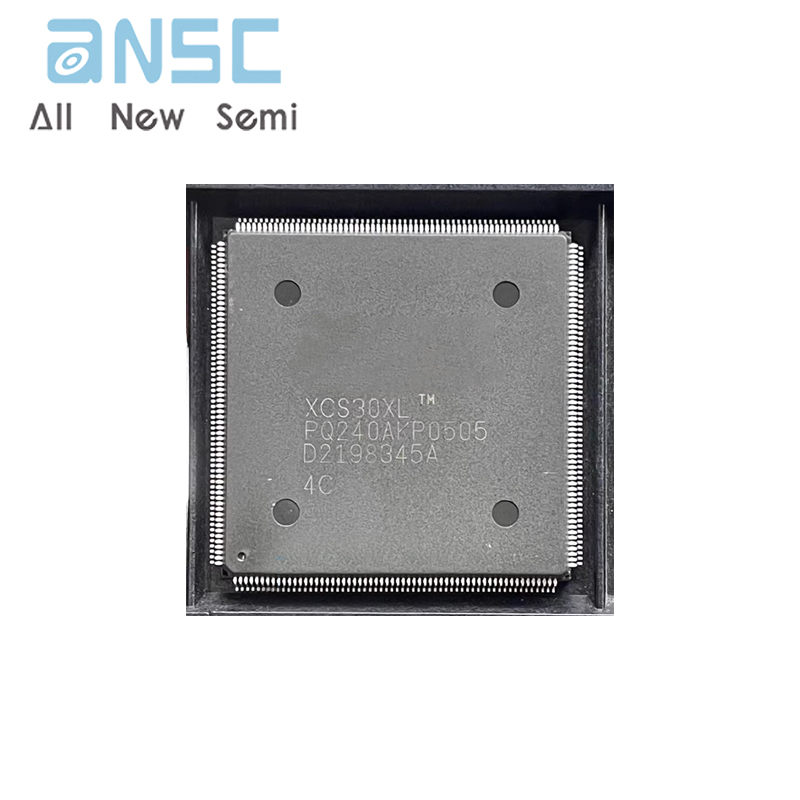

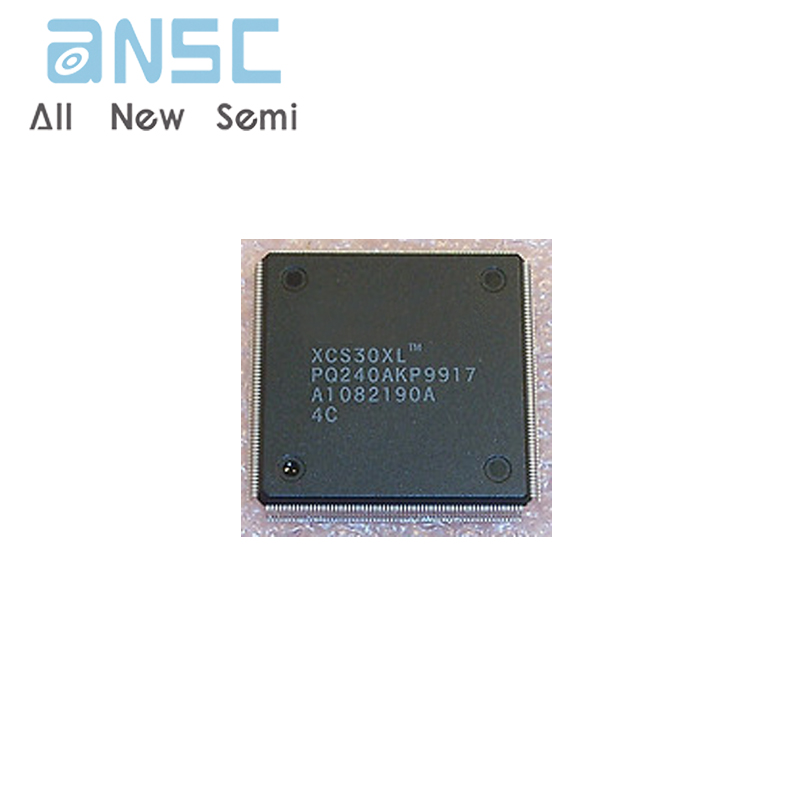

Product Photos

For more product information, please download the PDF
