Product Descriptions

The IDT77V106L25 is a member of IDT’s family of products supporting Asynchronous Transfer Mode (ATM) data communications and networking. The IDT77V106L25 implements the physical layer for 25.6 Mbps ATM, connecting a serial copper link (UTP Category 3 and 5) to an ATM layer device such as a SAR or a switch ASIC. The IDT77V106L25 also operates at 51.2 Mbps and is well suited to back-plane driving applications. The 77V106L25 utilizes an 8-bit UTOPIA interface on the cell side.

The IDT77V106L25 is fabricated using IDT’s state-of-the-art CMOS technology, providing the highest levels of integration, performance and reliability, with the low-power consumption characteristics of CMOS.

Product Features

• Performs the PHY-Transmission Convergence (TC) and Physical Media Dependent (PMD) Sublayer functions of the Physical Layer

• Compliant to ATM Forum (af-phy-040.000) and ITU-T I.432.5 specifications for 25.6Mbps physical interface

• Also operates at 51.2Mbps data rate

• 8-bit UTOPIA Level 1 Interface

• 3-Cell Transmit & Receive FIFOs

• Receiver Auto-Synchronization and Good Signal Indication

• LED Interface for status signalling

• Supports UTP Category 3 and 5 physical media

• Interfaces to standard magnetics

• Low-Power CMOS

• 3.3V supply with 5V tolerant inputs

• 64-lead TQFP Package (10 x 10 mm)

• Commercial and Industrial Temperature Ranges

Product Applications

• Up to 51.2Mbps backplane transmission

• Rack-to-rack short links

• ATM Switches

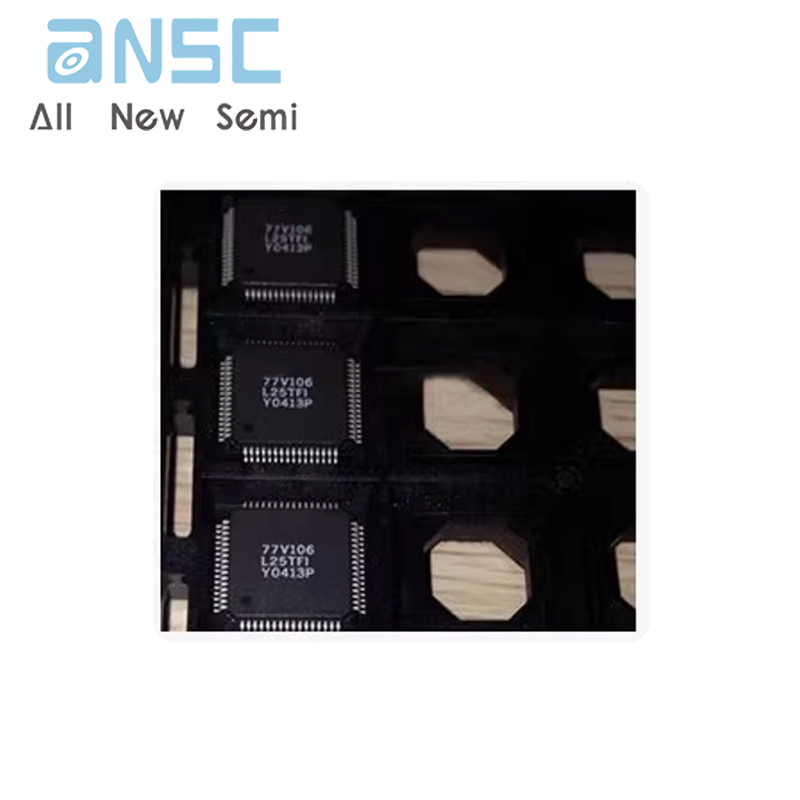

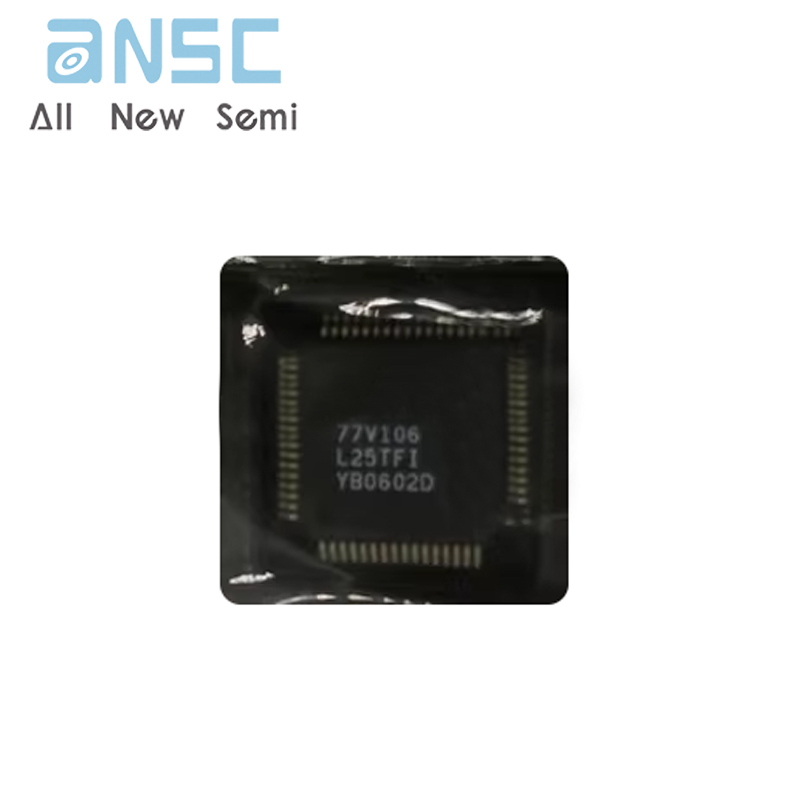

Product Photos

For more product information, please download the PDF
