Product Descriptions
The AD8361 is a mean-responding power detector for use in high frequency receiver and transmitter signal chains, up to 2.5 GHz. It is very easy to apply. It requires a single supply only between 2.7 V and 5.5 V, a power supply decoupling capacitor, and an input coupling capacitor in most applications. The output is a linear-responding dc voltage with a conversion gain of 7.5 V/V rms. An external filter capacitor can be added to increase the averaging time constant.
The AD8361 is intended for true power measurement of simple and complex waveforms. The device is particularly useful for measuring high crest-factor (high peak-to-rms ratio) signals, such as CDMA and W-CDMA.
Product Features
Calibrated rms response
Excellent temperature stability
Up to 30 dB input range at 2.5 GHz
700 mV rms, 10 dBm, re 50 Ω maximum input
±0.25 dB linear response up to 2.5 GHz
Single-supply operation: 2.7 V to 5.5 V
Low power: 3.3 mW at 3 V supply
Rapid power-down to less than 1 µA
Product Applications
Measurement of CDMA, W-CDMA, QAM, other complex
modulation waveforms
RF transmitter or receiver power measurement
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD8361ARTZ-RL7 |
| Category | RF and Wireless |
| RF Detectors | |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Frequency | 100MHz ~ 2.5GHz |
| RF Type | Cellular, CDMA, W-CDMA |
| Input Range | 0 ~ 700mV |
| Accuracy | ±0.25dB |
| Voltage - Supply | 2.7V ~ 5.5V |
| Current - Supply | 1.1 mA |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | AD8361 |

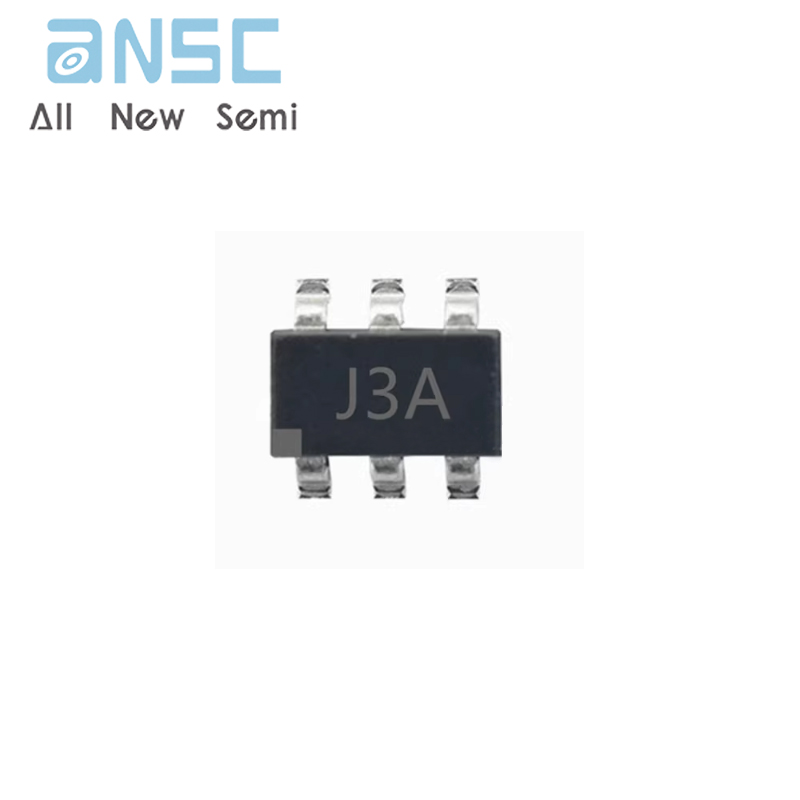

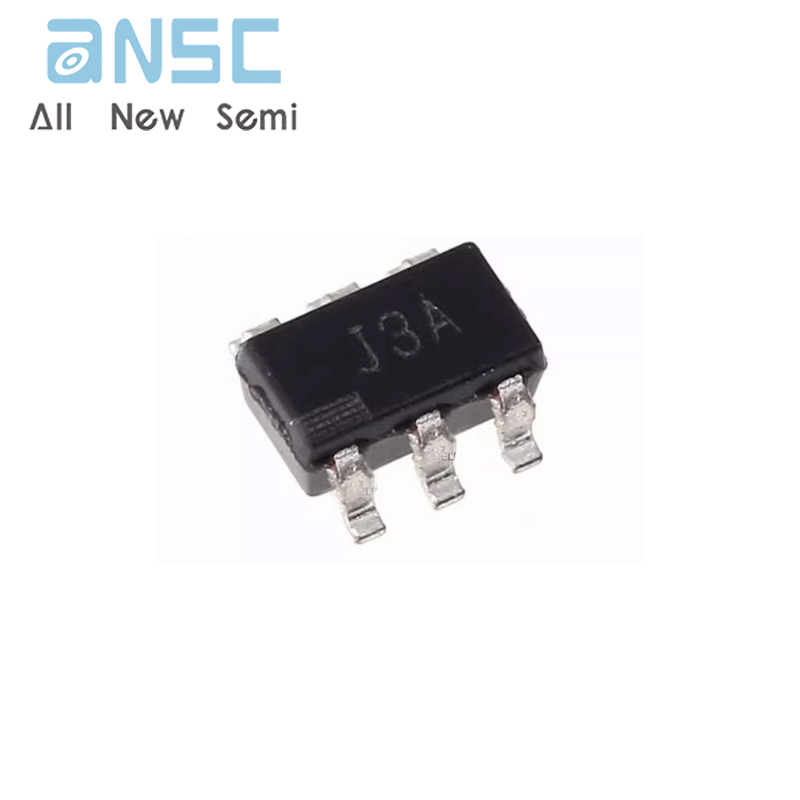

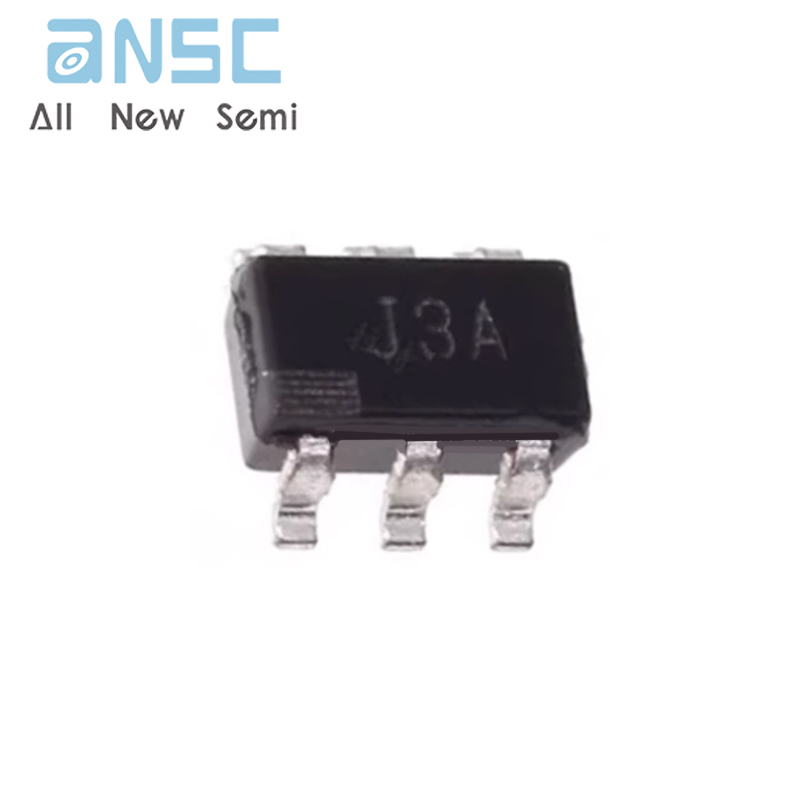

Product Photos
For more product information, please download the PDF
