Product Descriptions
The LM9036 ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 25µA Ground Pin current at a 0.1mA load, the LM9036 is ideally suited for automotive and other battery operated systems. The LM9036 retains all of the features that are common to low dropout regulators including a low dropout PNP pass device, short circuit protection, reverse battery protection, and thermal shutdown. The LM9036 has a 40V maximum operating voltage limit, a −40°C to +125°C operating temperature range, and ±5 PERCENT output voltage tolerance over the entire output current, input voltage, and temperature range.
Product Features
■ Ultra low Ground Pin current (IGND ≤ 25µA for IOUT= 0.1mA)
■ Fixed 5V, 3.3V, 50mA output
■ Output tolerance ±5% over line, load, and temperature
■ Dropout voltage typically 200mV @ IOUT = 50mA
■ −45V reverse transient protection
■ Internal short circuit current limit
■ Internal thermal shutdown protection
■ 40V operating voltage limit
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LM9036MX-5.0 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.40V @ 50mA |
| Current - Output | 50mA |
| Current - Quiescent (Iq) | 20 µA |
| Current - Supply (Max) | 2 mA |
| PSRR | 60dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM9036 |

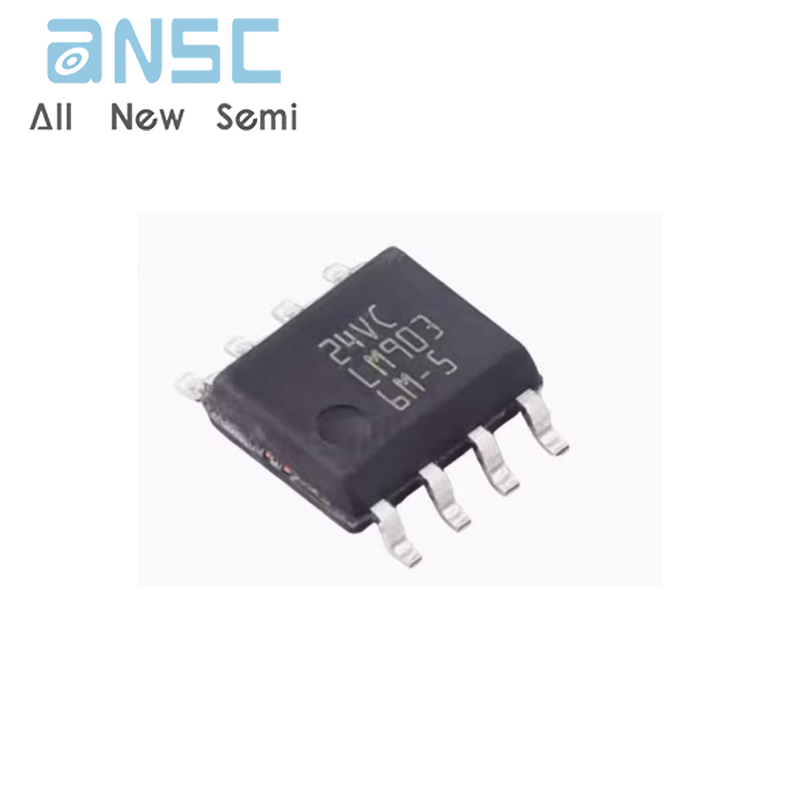

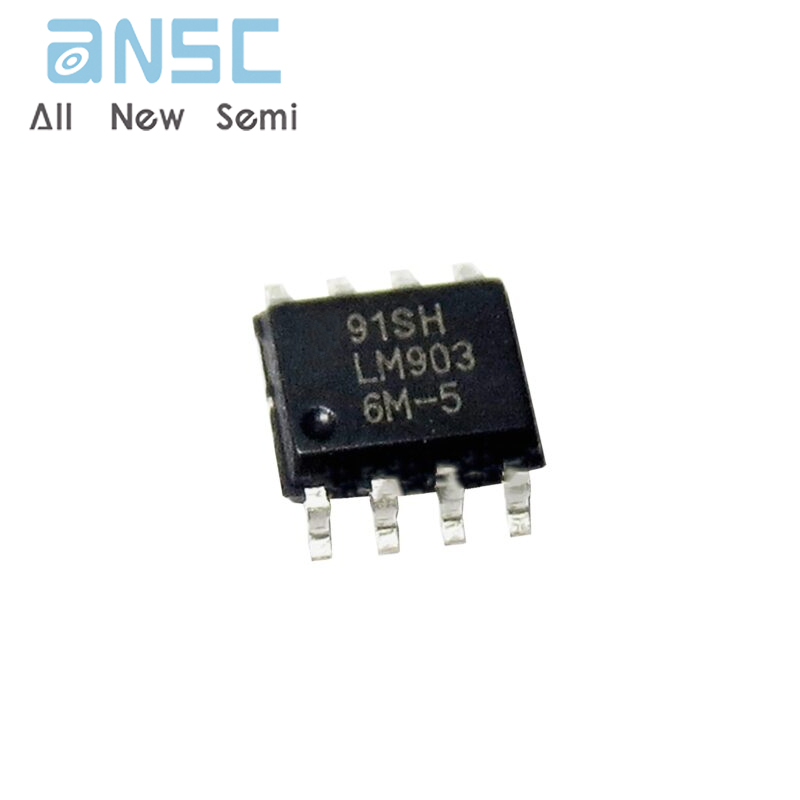

Product Photos
For more product information, please download the PDF
