Product Descriptions
The Microchip Technology Inc. MCP120/130 is a voltage supervisory device designed to keep a microcontroller in reset until the system voltage has reached the proper level and stabilized. It also operates as protection from brown-out conditions when the supply voltage drops below a safe operating level. Both devices are available with a choice of seven different trip voltages and both have open drain outputs. The MCP130 has an internal 5 kΩ pullup resistor. Both devices have active low RESET pins. The MCP120/130 will assert the RESET signal whenever the voltage on the VDD pin is below the trip-point voltage.
Product Features
• Holds microcontroller in reset until supply voltage reaches stable operating level
• Resets microcontroller during power loss
• Precision monitoring of 3V, 3.3V and 5V systems
• 7 voltage trip points available
• Active low RESET pin
• Open drain output
• Internal pull-up resistor (5 kΩ) for MCP130
• Holds RESET for 350 ms (typical)
• RESET to VCC = 1.0V
• Accuracy of ±125 mV for 5V systems and ±75 mV for 3V systems over temperature
• 45 µA typical operating current
• Temperature range:
- Industrial (I): -40°C to +85°C
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MCP120T-300I/TT |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Type | Simple Reset/Power-On Reset |
| Number of Voltages Monitored | 1 |
| Voltage - Threshold | 2.925V |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Reset Timeout | 150ms Minimum |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | MCP120 |

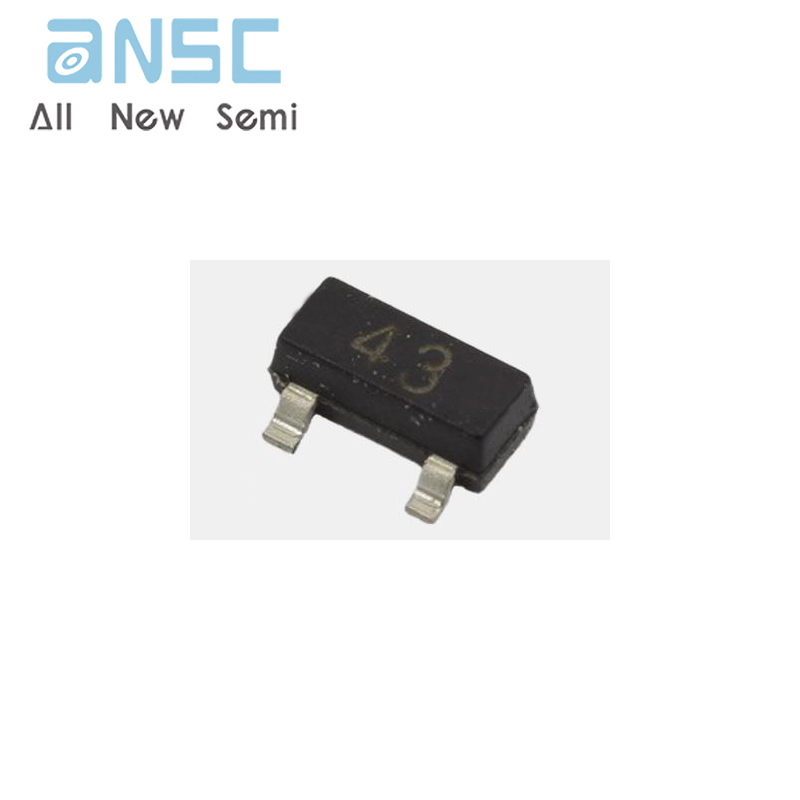

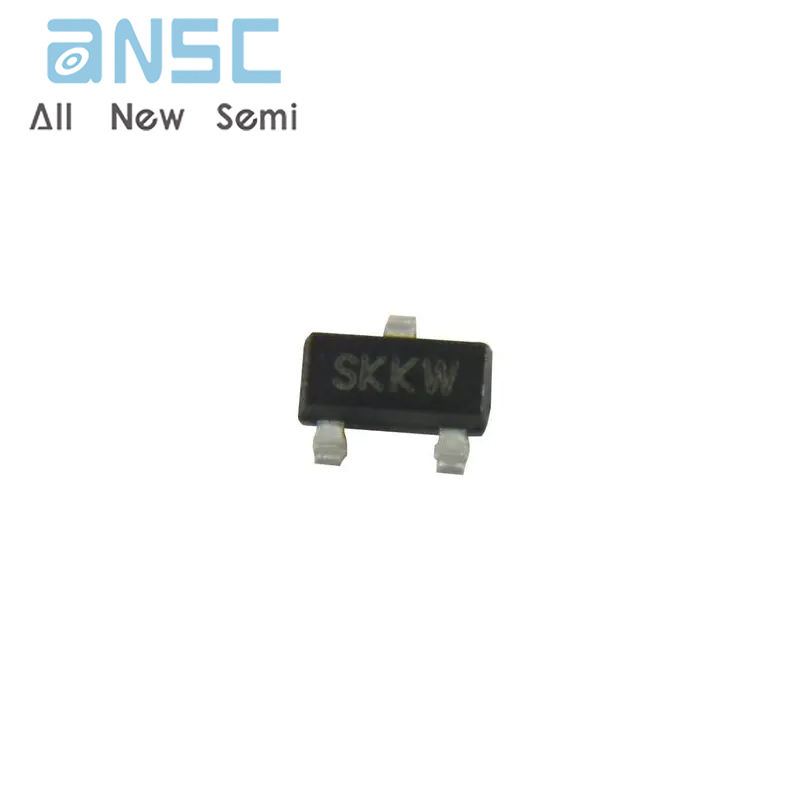

Product Photos
