Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD4086BE |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters - Multi-Function, Configurable | |
| Manufacturer | - |
| Series | 4000B |
| Packaging | Tube |
| Part Status | Active |
| Logic Type | AND/OR/INVERT Gate |
| Number of Circuits | 1 |
| Number of Inputs | 8 Input (2, 2, 2, 2) |
| Schmitt Trigger Input | No |
| Output Type | Single-Ended |
| Current - Output High, Low | 6.8mA, 6.8mA |
| Voltage - Supply | 3V ~ 18V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP |
| Base Product Number | CD4086 |

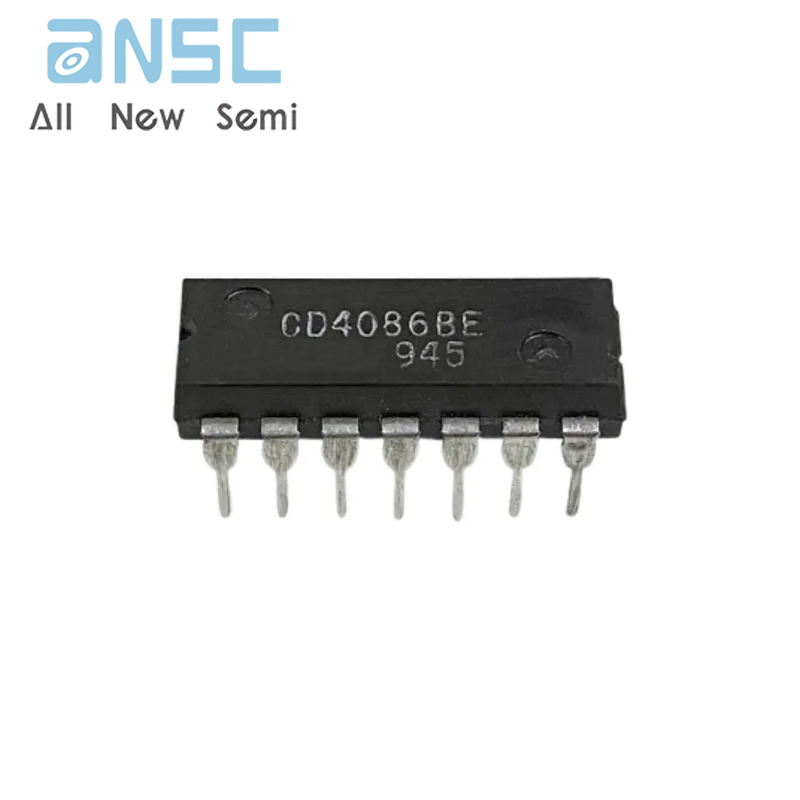

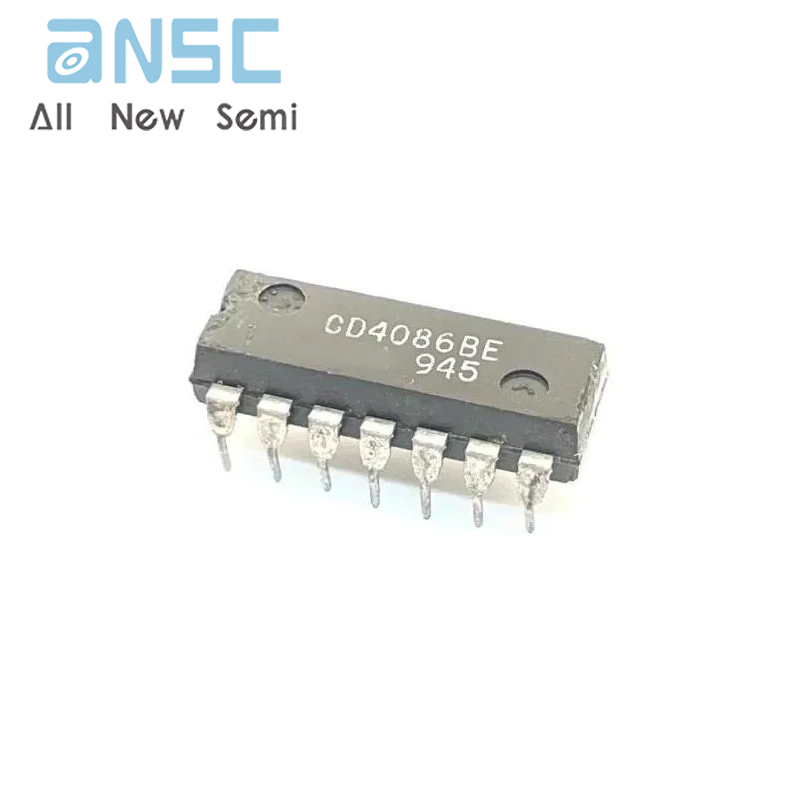

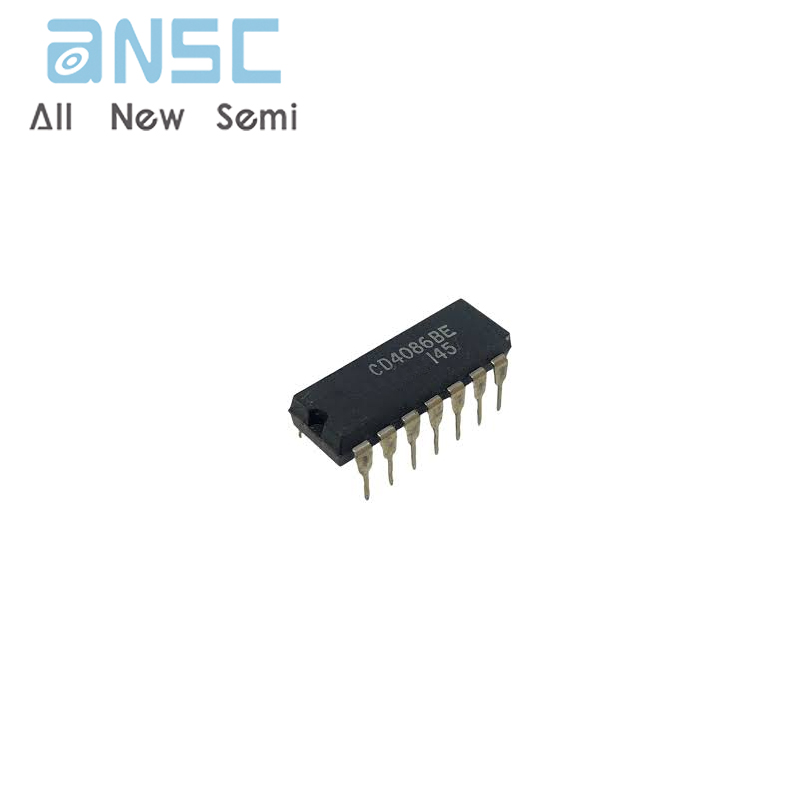

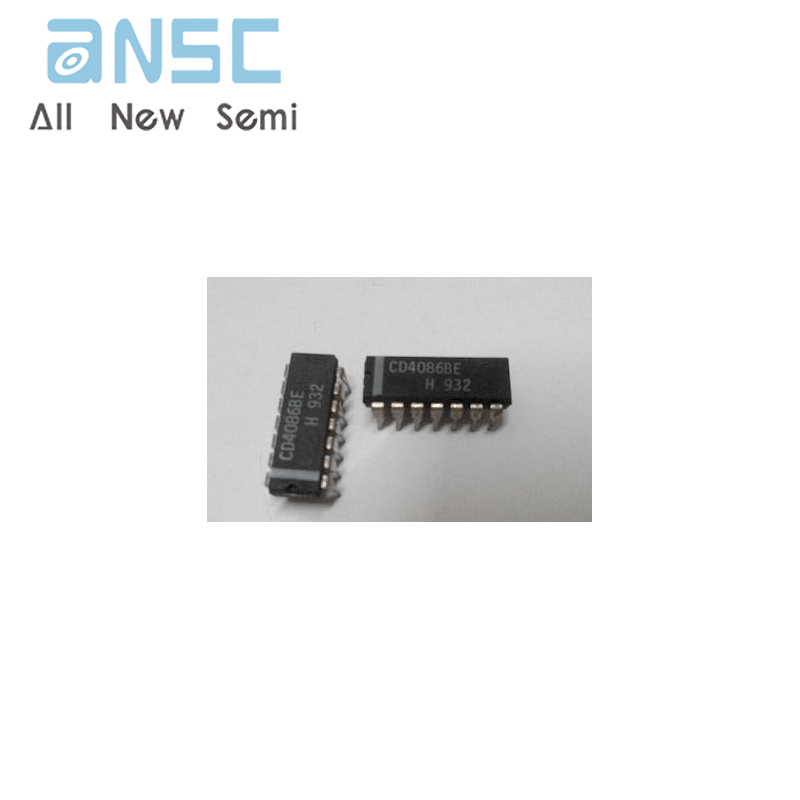

Product Photos
For more product information, please download the PDF
