Product Descriptions
The L78xx series of three-terminal positive regulators is available in TO-220, TO-220FP, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible.
If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Product Features
■ Output current to 1.5 A
■ Output voltages of 5; 5.2; 6; 8; 8.5; 9; 10; 12;15; 18; 20; 24 V
■ Thermal overload protection
■ Short circuit protection
■ Output transition SOA protection
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-L7809CV |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2V @ 1A (Typ) |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 8 mA |
| PSRR | 55dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Base Product Number | L7809 |

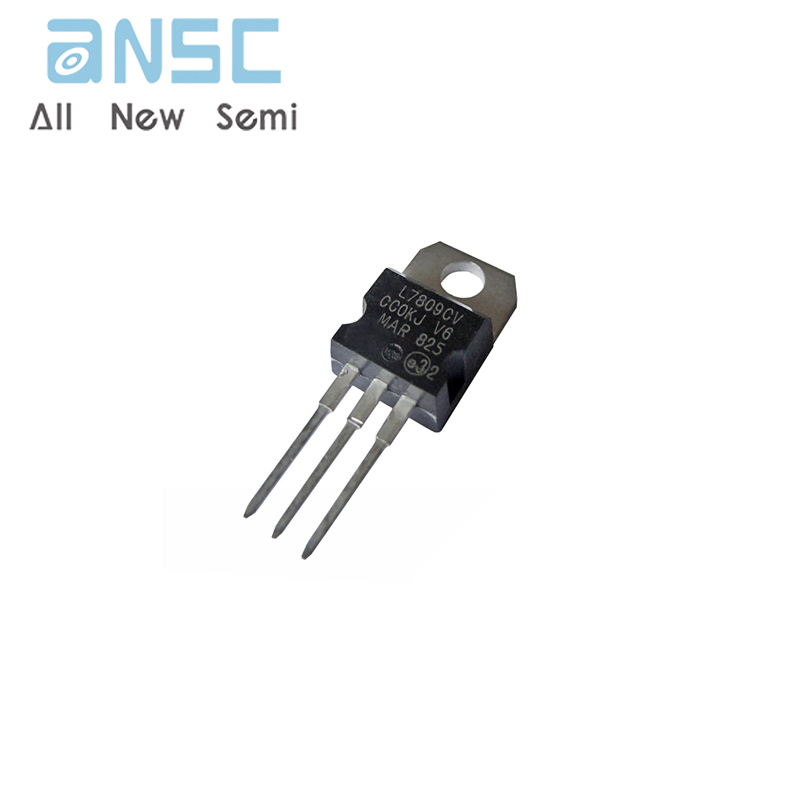

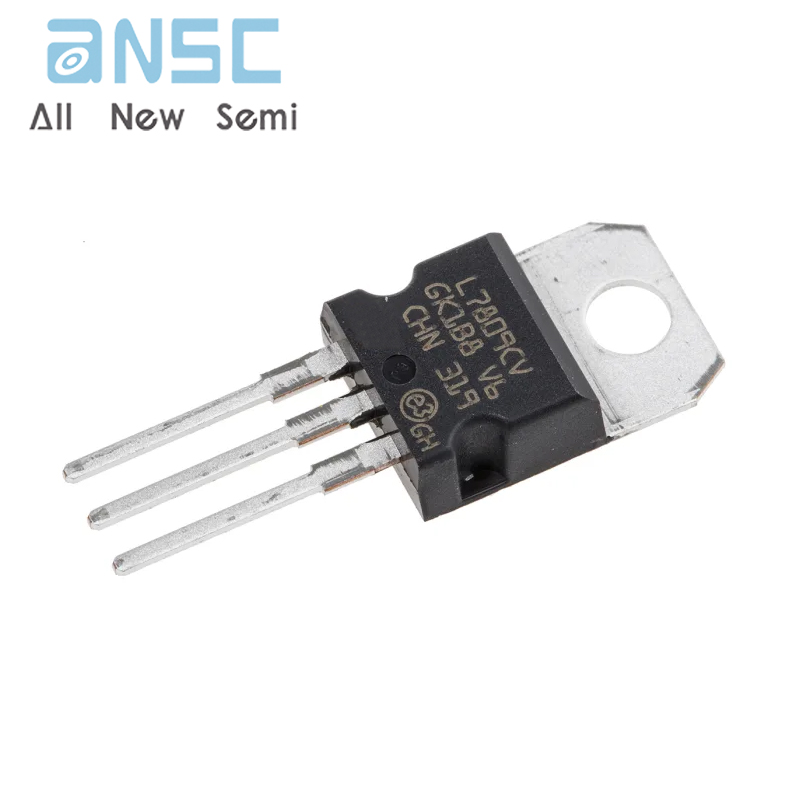

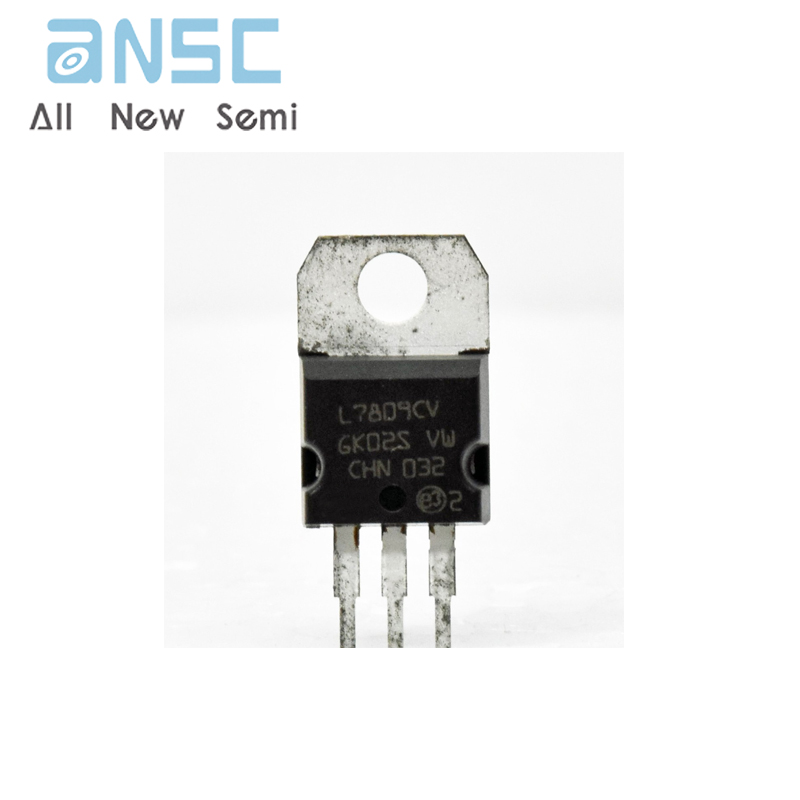

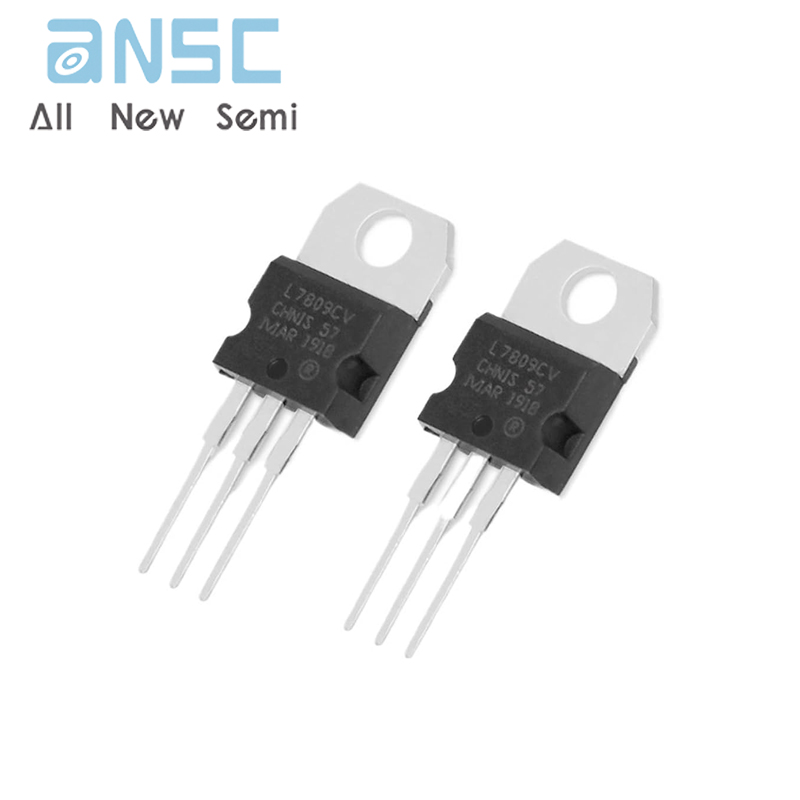

Product Photos
For more product information, please download the PDF
