Product Features
• High-performance RISC CPU
• Only 35 single word instructions to learn
• All single cycle instructions except for program branches which are two cycle
• Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle
• Up to 2K x 14 words of Program Memory, up to 128 x 8 bytes of Data Memory (RAM)
• Interrupt capability
• Eight level deep hardware stack
• Direct, indirect, and relative addressing modes
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
• Programmable code-protection
• Power saving SLEEP mode
• Selectable oscillator options
• Low-power, high-speed CMOS EPROM technology
• Fully static design
• Wide operating voltage range: 2.5V to 6.0V
• High Sink/Source Current 25/25 mA
• Commercial, Industrial and Extended temperature ranges
• Program Memory Parity Error Checking Circuitry with Parity Error Reset (PER) (PIC16C715)
• Low-power consumption:
- < 2 mA @ 5V, 4 MHz
- 15 µA typical @ 3V, 32 kHz
- < 1 µA typical standby current
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-PIC16C710-04/P |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | - |
| Series | PIC® 16C |
| Packaging | Tube |
| Part Status | Active |
| DigiKey Programmable | Verified |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 4MHz |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 13 |
| Program Memory Size | 896B (512 x 14) |
| Program Memory Type | OTP |
| EEPROM Size | - |
| RAM Size | 36 x 8 |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 6V |
| Data Converters | A/D 4x8b |
| Oscillator Type | External |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 18-PDIP |
| Package / Case | 18-DIP (0.300", 7.62mm) |
| Base Product Number | PIC16C710 |

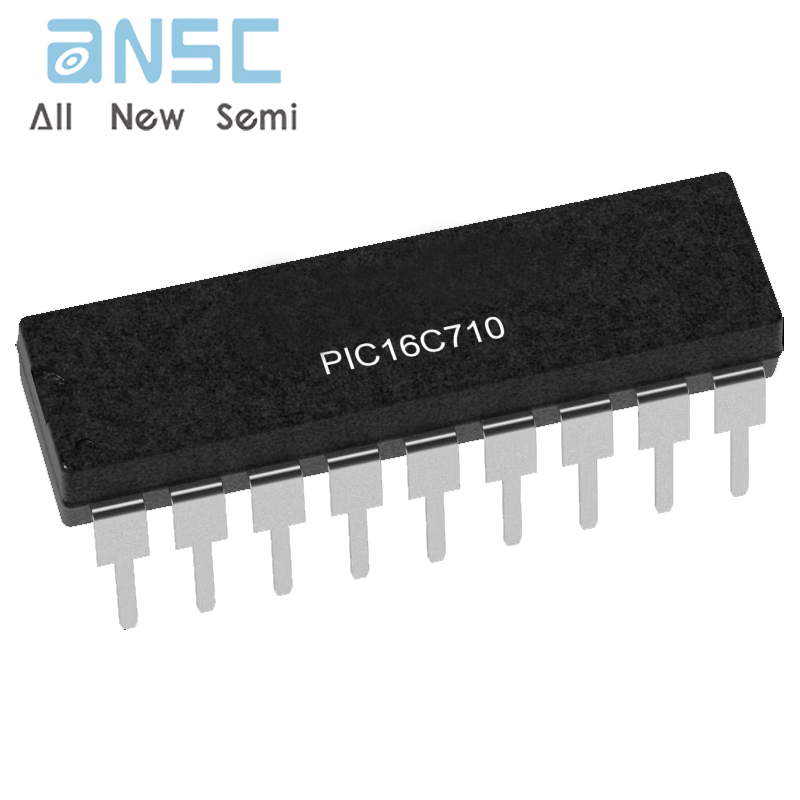

Product Photos
For more product information, please download the PDF
