Product Features
♦ True 14-Bit Accuracy: 1⁄2LSB INL 82dB SINAD
♦ 9.4µs Conversion Time
♦ 10µA Shutdown Mode
♦ Built-In Track/Hold
♦ AC and DC Specified
♦ Unipolar (0V to VREF) and Bipolar (-VREF to VREF) Input Range
♦ Three-State Serial-Data Output
♦ Small 16-Pin DIP, SO, and Ceramic SB Packages
♦ Pin-Compatible 16-Bit Upgrade (MAX195)
Product Applications
Portable Instruments
Audio
Industrial Controls
Robotics
Multiple Transducer
Medical Signal
Measurements
Acquisition
Vibrations Analysis
Digital Signal Processing
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX194BCPE |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Manufacturer | - |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 85k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | ±5V |
| Features | - |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Mounting Type | Through Hole |
| Base Product Number | MAX194 |

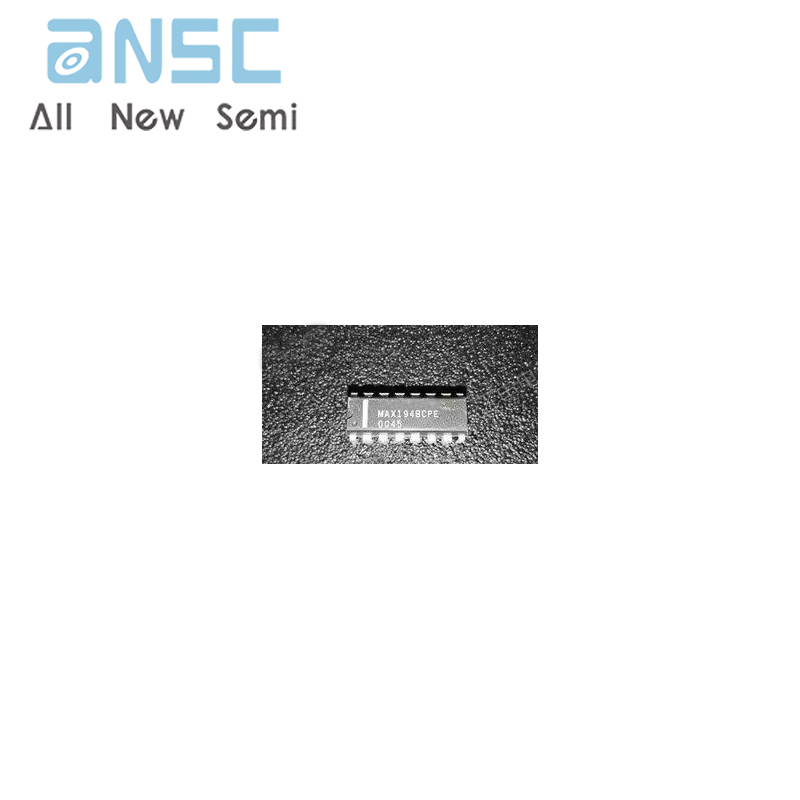

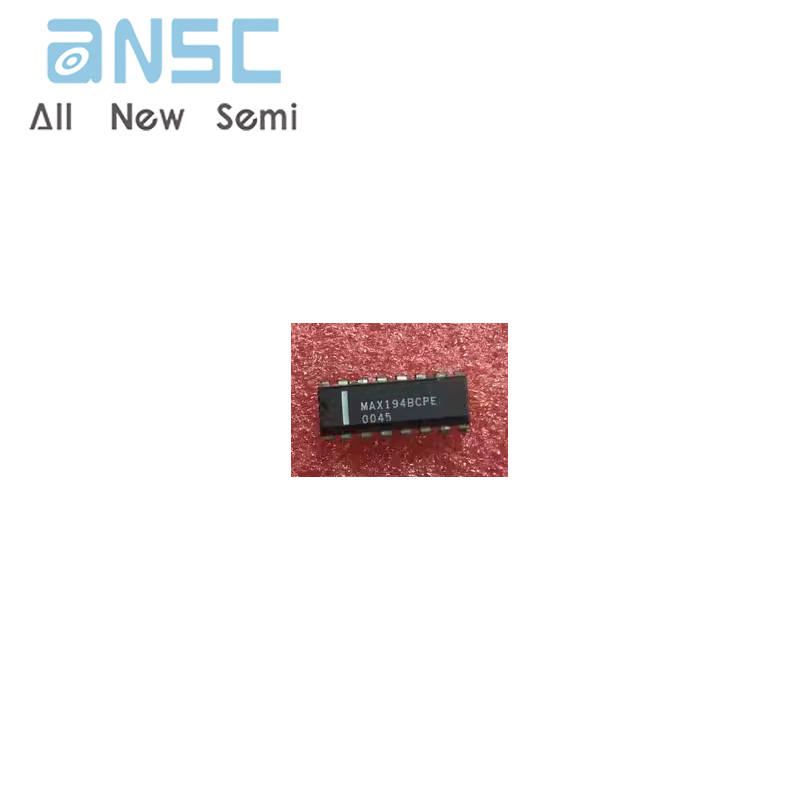

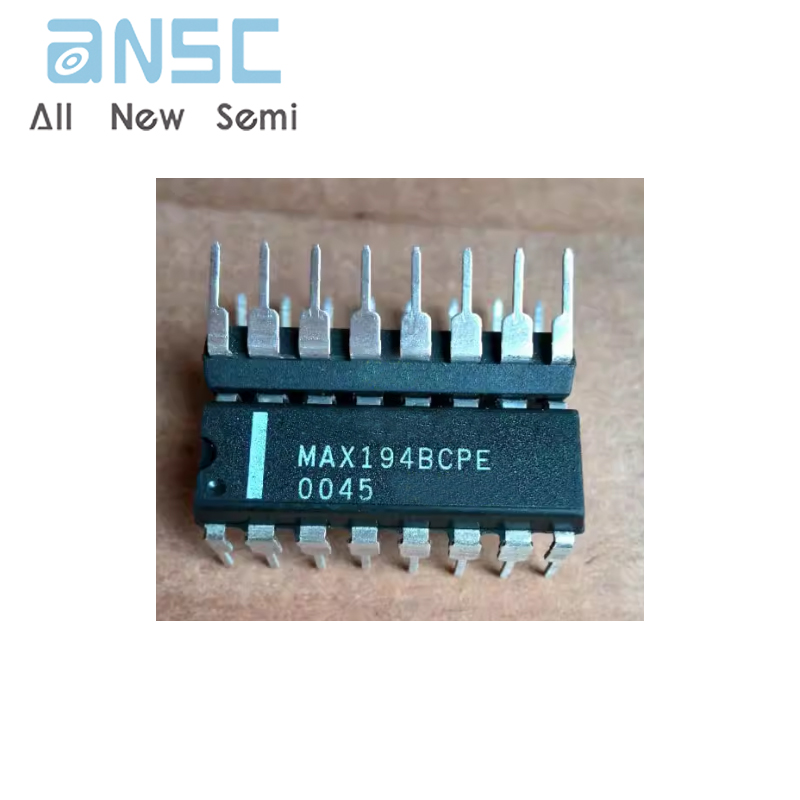

Product Photos
