Product Features
Propagation delay time = 60 ns (typ.) at CL=50 pF, VDD = 10 V
Buffered inputs and outputs
Standardized symmetrical output characteristics
100 percent tested for maximum quiescent current at 20 V
5-V, 10-V, and 15-V parametric ratings
Maximum input current of 1 uA at 18 V over full package-temperature range;100 nA at 18 V and 25°C
Noise margin (over full package temperature range):
1 Vat VDD=5 V
2 Vat VDD=10V
2.5 Vat VDD=15 V
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD4025BE |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 4000B |
| Packaging | Tube |
| Part Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Features | - |
| Voltage - Supply | 3V ~ 18V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Input Logic Level - Low | 1.5V ~ 4V |
| Input Logic Level - High | 3.5V ~ 11V |
| Max Propagation Delay @ V, Max CL | 90ns @ 15V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | CD4025 |

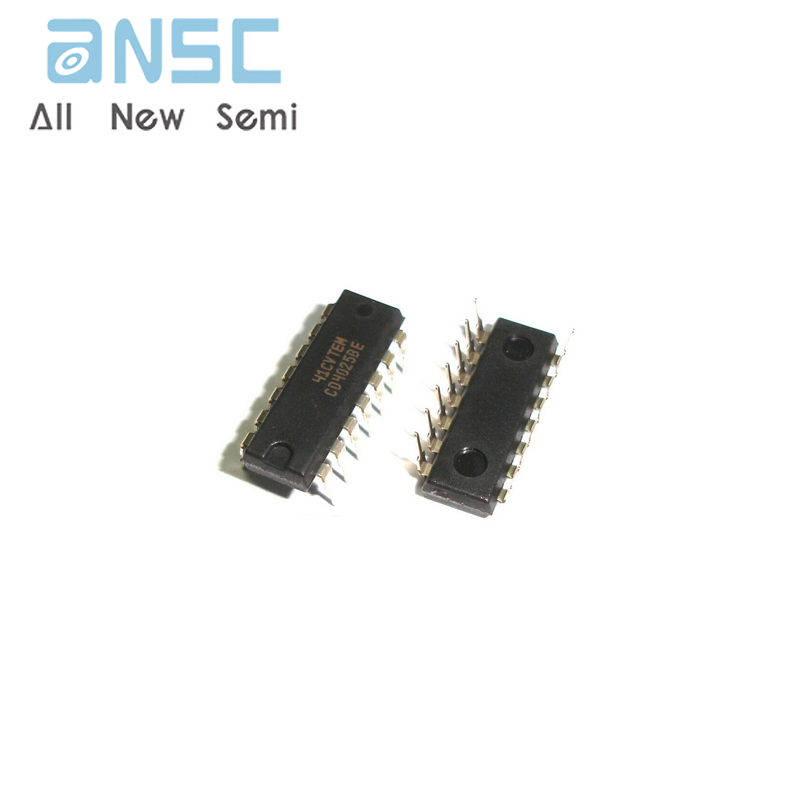

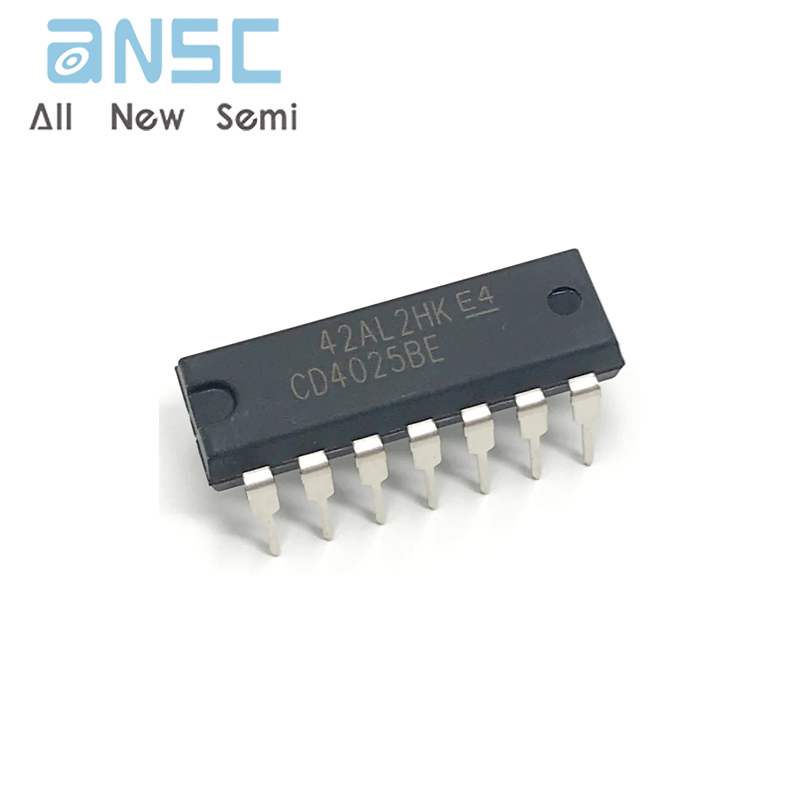

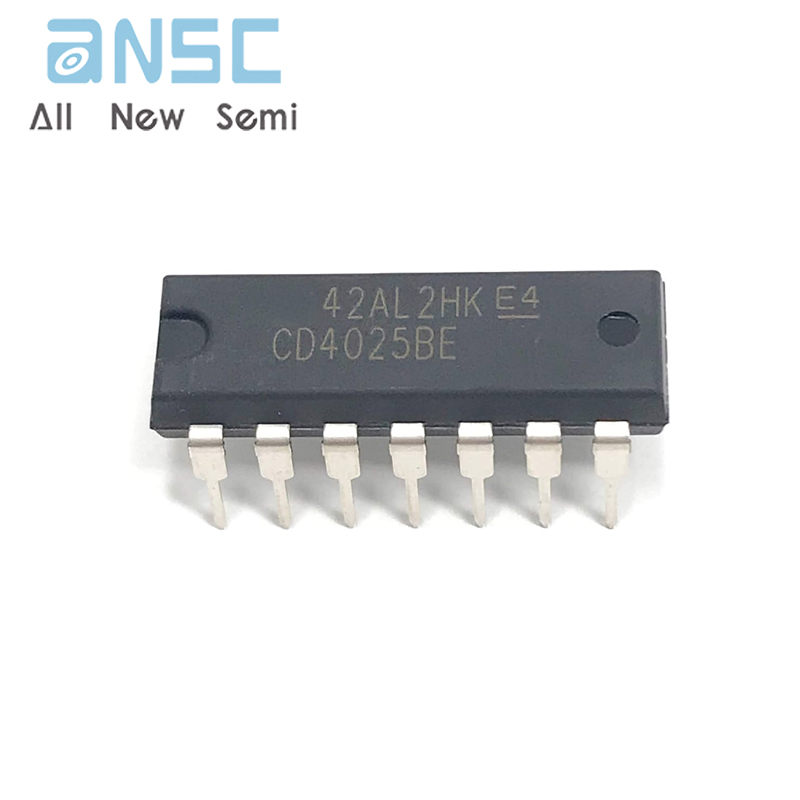

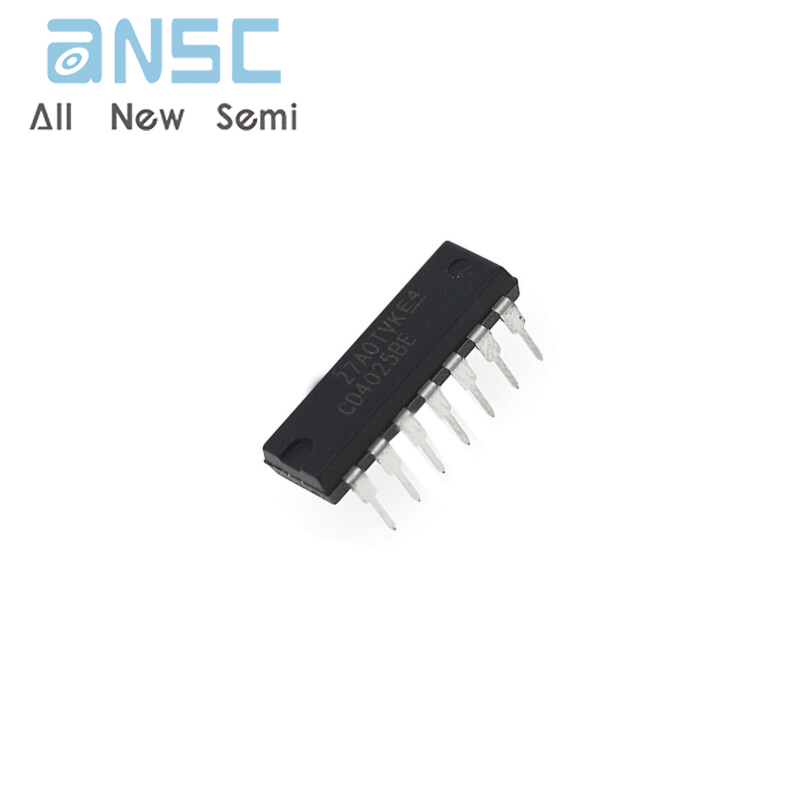

Product Photos
