Product Descriptions

The B Series logic gates are constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power dissipation and/or high noise immunity is desired.

Product Features

• Supply Voltage Range = 3.0 Vdc to 18 Vdc

• All Outputs Buffered

• Capable of Driving Two Low–power TTL Loads or One Low–power Schottky TTL Load Over the Rated Temperature Range.

• Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B

• Pin–for–Pin Replacements for Corresponding CD4000 Series B Suffix Devices (Exceptions: MC14068B and MC14078B)

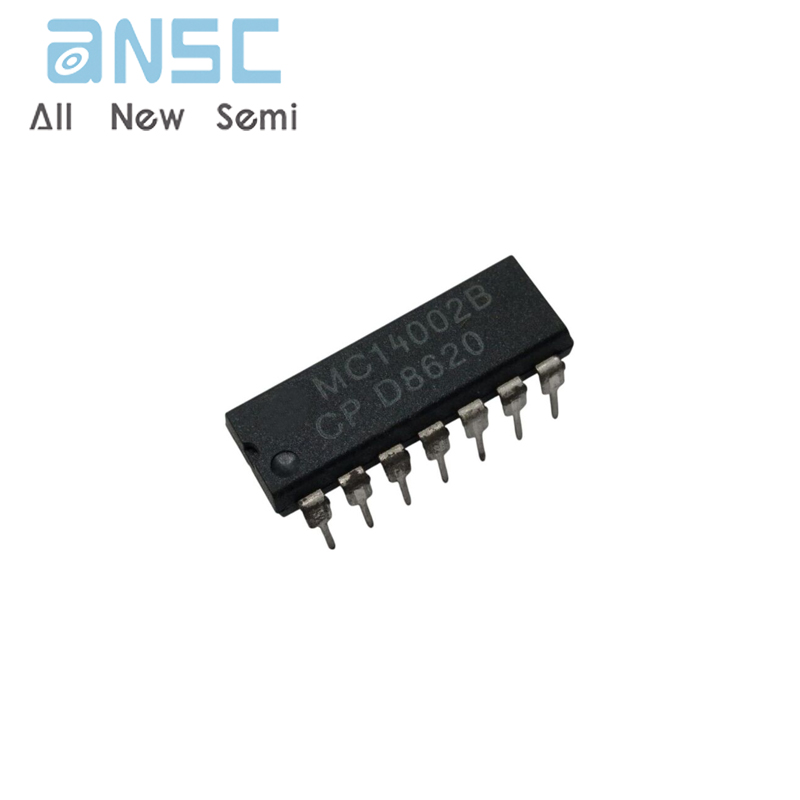

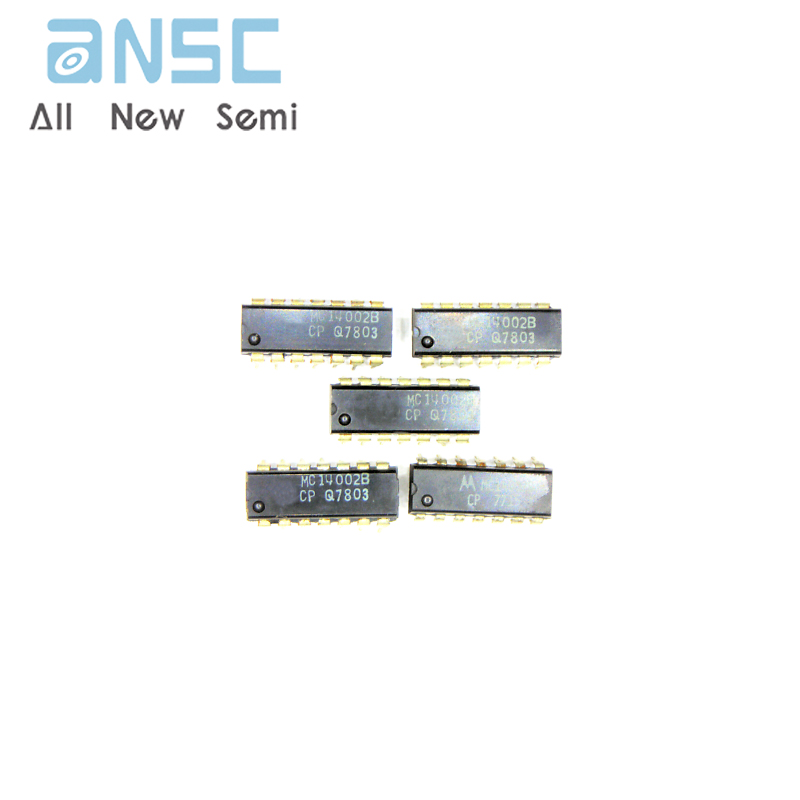

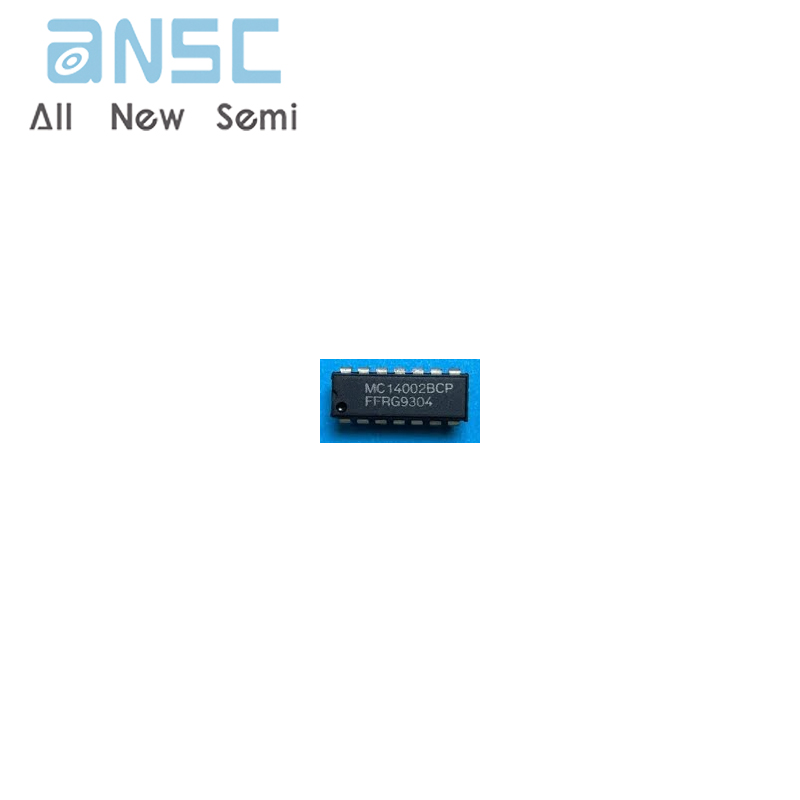

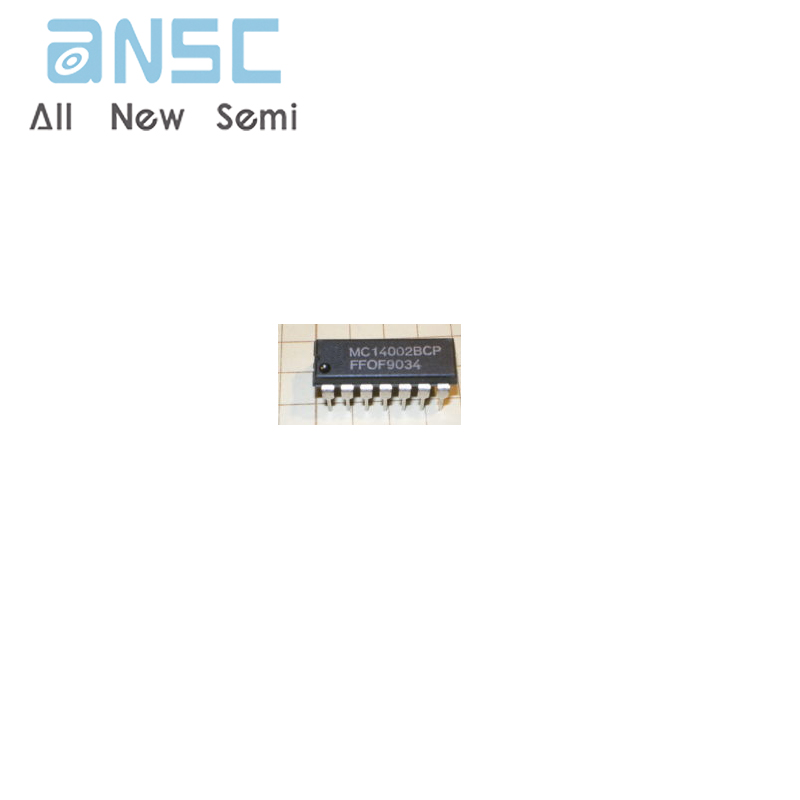

Product Photos

For more product information, please download the PDF
