Product Descriptions
The MP8101 is a rail-to-rail output, operational amplifier in a TSOT-23 package. This amplifier provides 400KHz bandwidth while consuming an incredibly low 11µA of supply current. The MP8101 can operate with a single supply voltage as low as 1.8V.
Product Features
• Single Supply Operation: 1.8V to 5.5V
• TSOT23-5 Package
• 400KHz Gain Bandwidth
• 11µA Supply Current
• Rail-to-Rail Output
• Unity-Gain Stable
• Input Common Mode to Ground
• Drives Up to 1000pF of Capacitive Loads
Product Applications
• Portable Equipment
• PDAs
• Pagers
• Cordless Phones
• Handheld GPS
• Consumer Electronics
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP8101DJ-LF-Z |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.2V/µs |
| Gain Bandwidth Product | 400 kHz |
| -3db Bandwidth | 1 MHz |
| Current - Input Bias | 2 pA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 11碌A |
| Current - Output / Channel | 20 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | MP8101 |

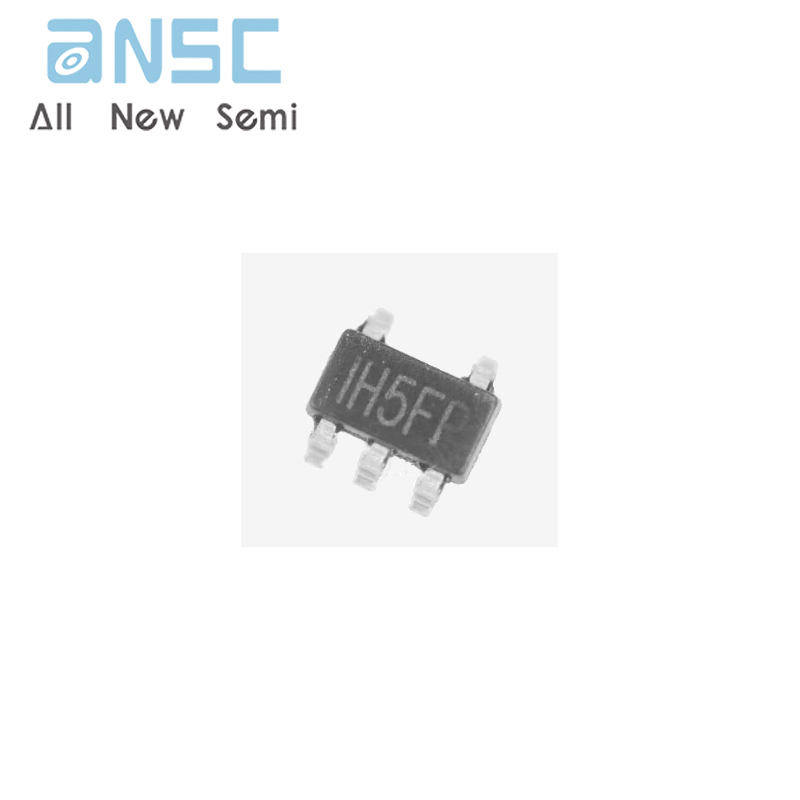

Product Photos
For more product information, please download the PDF
