Product Descriptions
The MP2357 is a monolithic step-down switch mode converter with a built-in internal power MOSFET. It achieves a 0.5A peak output current over a wide input supply range with excellent load and line regulation. Current mode operation provides fast transient response and eases loop stabilization. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown.
The MP2357 requires a minimum number of readily available standard external components. The MP2357 is available in TSOT23-6 and SOT23-6 packages.
Product Features
0.5A Peak Output Current
0.35Ω Internal Power MOSFET Switch
Stable with Low ESR Output Ceramic Capacitors
Up to 92 percent Efficiency
0.1μA Shutdown Mode
Fixed 1.4MHz Frequency
Thermal Shutdown
Cycle-by-Cycle Over Current Protection
Wide 4.5V to 24V Operating Input Range
Output Adjustable from 0.81V to 15V
Available in TSOT23-6 and SOT23-6 Packages
Product Applications
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP2357DT-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 0.81V |
| Voltage - Output (Max) | 15V |
| Current - Output | 500mA |
| Frequency - Switching | 1.4MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | MP2357 |

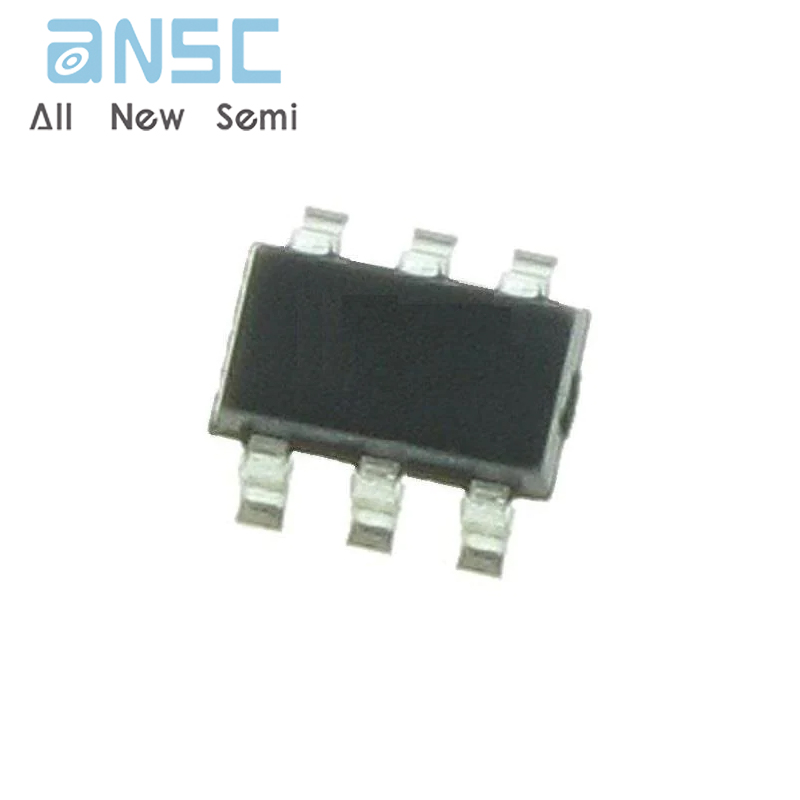

Product Photos
