Product Descriptions
The MP2102 is a dual-output, internally compensated, 1.5MHz fixed frequency PWM step-down converter. It is ideal for powering portable equipment from a single cell LithiumIon (Li+) Battery. Each channel of the MP2102 can supply 800mA of load current from a 2.5V to 6V input voltage. Both output voltages can be regulated as low as 0.6V.
The device features integrated high-side switches and synchronous rectifiers for high efficiency step-down conversion without the need for external Schottky diodes. With peak current mode control and internal compensation, the MP2102 can be stabilized with ceramic capacitors and small inductors. Fault condition protection includes cycle-bycycle current limiting and thermal shutdown.
The MP2102 is available in small 10-pin QFN with exposed pad and 10-pin MSOP packages.
Product Features
• Dual 800mA Outputs
• Internal Power MOSFET Switches
• Up to 95 PERCENT Efficiency
• 1.5MHz Switching Frequency
• 1µA Shutdown Current
• Stable with Low ESR Output Ceramic Capacitors
• Thermal Shutdown
• Cycle-by-Cycle Over Current Protection
• Short Circuit Protection
• Power-On Reset with Programmable Delay
• 2.5V to 6V Operating Input Range
• Output Adjustable from 0.6V to 5.4V
• Input Undervoltage Lockout
• Available in 10-Pin QFN with Exposed Pad and 10-Pin MSOP Packages.
Product Applications
• DVD+/-RW Drive
• Smart Phones
• PDAs
• Digital Cameras
• Portable Instruments
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP2102DQ-LF-P |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.4V |
| Current - Output | 800mA |
| Frequency - Switching | 1.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-QFN (3x3) |
| Base Product Number | MP2102 |

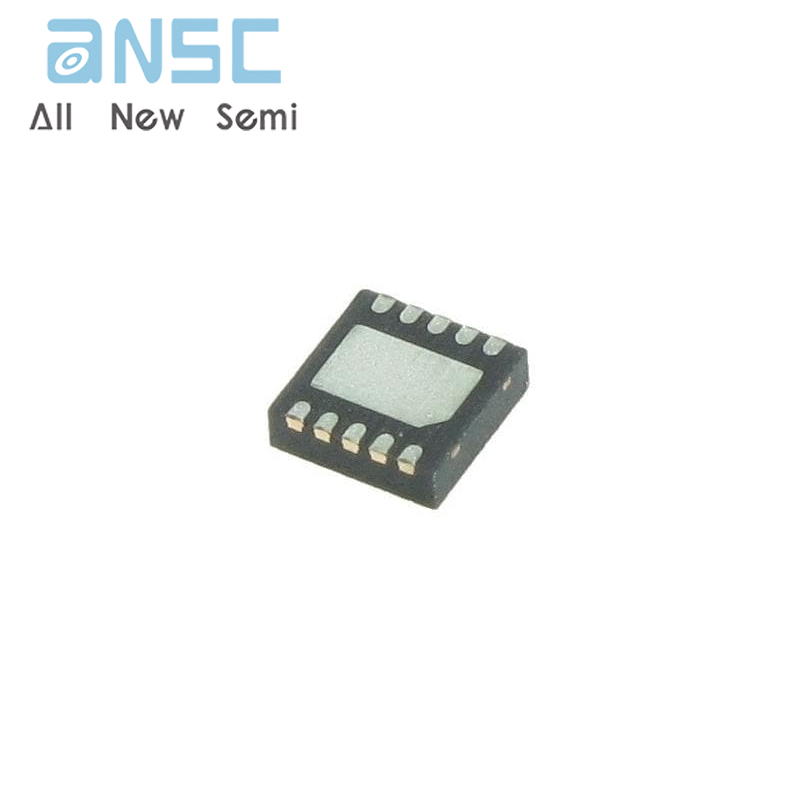

Product Photos
