Product Descriptions
The MP6900 is a low-drop, fast turn-off intelligent controller that combined with an external switch replaces Schottky diodes in high-efficiency, Flyback converters. The chip regulates the forward drop of an external switch to about 70mV and switches it off as soon as the voltage becomes negative. Package choices are a space saving TSOT23-5, QFN6 (3x3mm) or SOIC-8.
Product Features
• Works with both Standard and Logic Level FETS
• Compatible with Energy Star, 1W Standby Requirements
• VDD Range From 8V to 24V
• Fast Turn-off Total Delay of 20ns
• Max 400kHz Switching Frequency
• <3mA Low Quiescent Current
• Supports CCM, DCM and Quasi-Resonant Topologies
• Supports High-side and Low-side Rectification
• Power Savings of Up to 1.5W in a Typical Notebook Adapter
Product Applications
• Industrial Power Systems
• Distributed Power Systems
• Battery Powered Systems
• Flyback Converters
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP6900DJ-LF-P |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Supply Controllers, Monitors | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| DigiKey Programmable | Not Verified |
| Applications | Secondary-Side Controller |
| Voltage - Input | - |
| Voltage - Supply | 8V ~ 24V |
| Current - Supply | 3 mA |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | MP6900 |

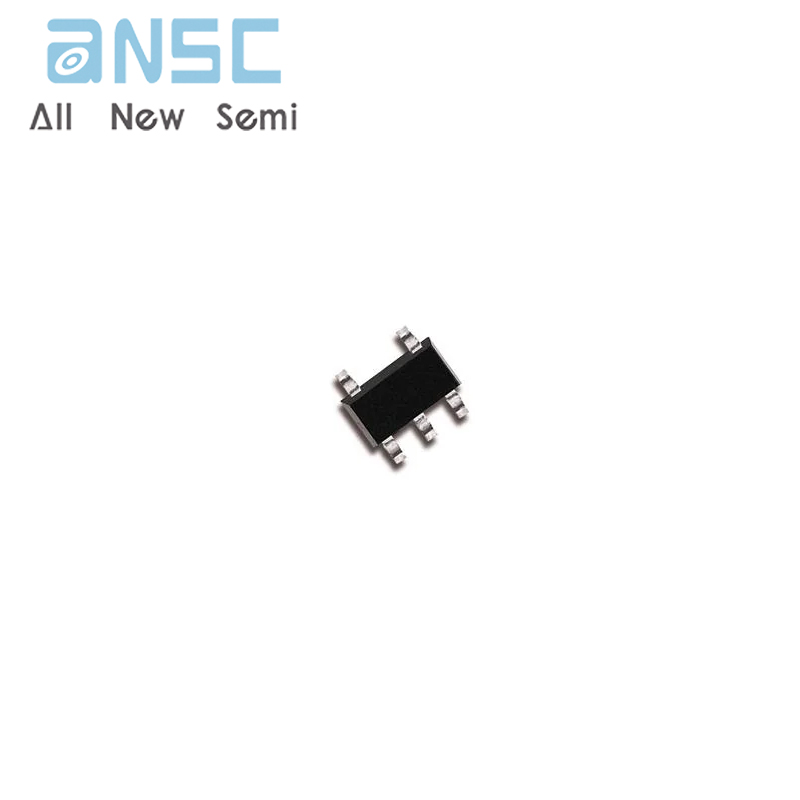

Product Photos
For more product information, please download the PDF
