Product Descriptions
The MP8130 is a rail-to-rail output, high voltage operational amplifier in a TSOT-23 package. This amplifier provides 200KHz bandwidth while consuming an incredibly low 10µA of supply current. The MP8130 can operate over a single supply range of 2.7V to 36V. It is available in tiny TSOT23-5 packages.
Product Features
• Single Supply Operation: 2.7V to 36V
• TSOT23-5 Package
• 200KHz –3dB Bandwidth
• 10µA Supply Current
• Rail-to-Rail Output
• Unity-Gain Stable
• Input Common Mode to Ground
• Drives Up to 1000pF of Capacitive Loads
• Available in a TSOT23-5 Package
Product Applications
• Precision Micropower Amplifiers
• Micropower Signal Processing
• Test Equipment
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP8130DJ-LF-Z |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.1V/µs |
| Gain Bandwidth Product | 100 kHz |
| -3db Bandwidth | 200 kHz |
| Current - Input Bias | 2 pA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 10µA |
| Current - Output / Channel | 20 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | MP8130 |

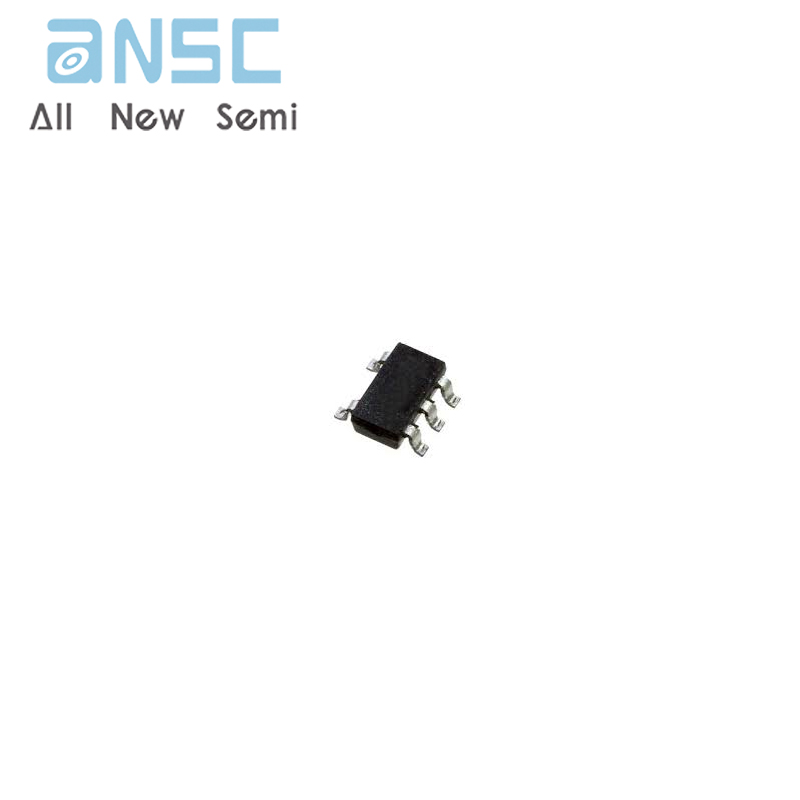

Product Photos
For more product information, please download the PDF
