Product Features
The MP2104 is a 1.7MHz constant frequency, current mode, PWM step-down converter. The device integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. It is ideal for powering portable equipment that runs from a single cell Lithium-Ion (Li+) battery. The MP2104 can supply 600mA of load current from a 2.5V to 6V input voltage. The output voltage for the MP2104DJ can be regulated as low as 0.6V, while the output voltages of the MP2104DJ-1.5 and MP2104DJ-1.8 are fixed at 1.5V and 1.8V, respectively. The MP2104 can also run at 100 PERCENT duty cycle for low dropout applications.
The MP2104 is available in low profile (1mm) 5-pin TSOT and 0.75mm TQFN-6 packages.
Product Features
High Efficiency: Up to 95 PERCENT
1.7MHz Constant Switching Frequency
600mA Available Load Current
2.5V to 6V Input Voltage Range
Output Voltage as Low as 0.6V
100 PERCENT Duty Cycle in Dropout
Current Mode Control
Short Circuit Protection
Thermal Fault Protection
<0.1μA Shutdown Current
1.5V and 1.8V Fixed Output Versions
Space Saving 5-Pin TSOT23 and 6-pin thin QFN Packages
Product Applications
Cellular and Smart Phones
Microprocessors and DSP Core Supplies
PDAs
MP3 Players
Digital Still and Video Cameras
Portable Instruments
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP2104DQT-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 6V |
| Current - Output | 600mA |
| Frequency - Switching | 1.7MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-TQFN (3x3) |
| Base Product Number | MP2104 |

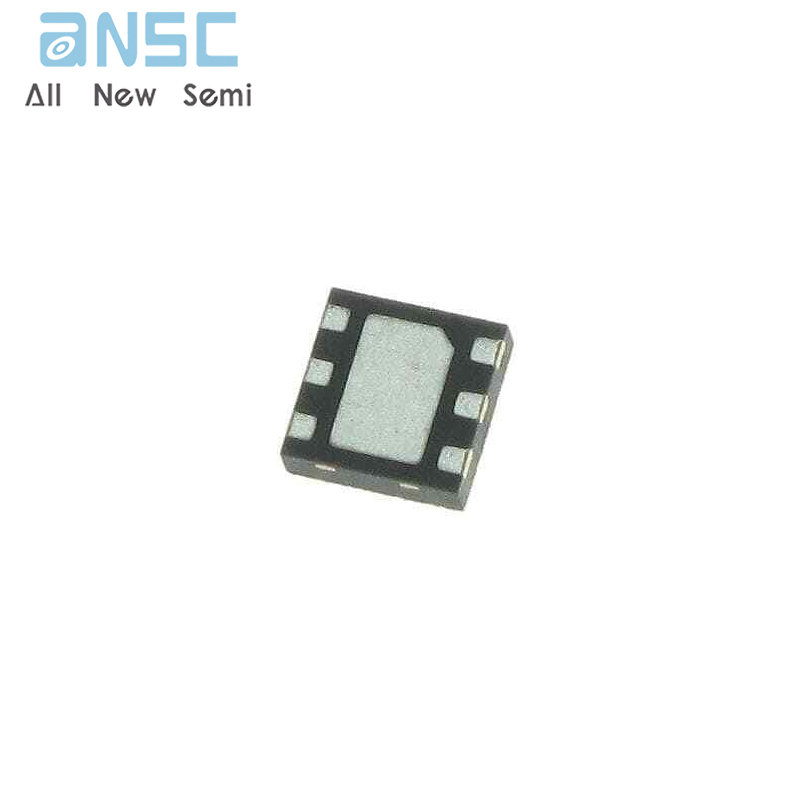

Product Photos
For more product information, please download the PDF
