Product Descriptions
The EV2108DQ/DK-00A is the evaluation board for the MP2108, a 2A, 720KHz synchronous buck converter designed for low voltage applications requiring high efficiency.
The MP2108 is capable of providing an output voltage as low as 0.9V and integrates top and bottom switches to minimize power loss and component count. The 720KHz switching frequency reduces the size of filtering components for a small solution size.
The MP2108 includes cycle-by-cycle current limiting and under voltage lockout. The 10-pin MSOP package is available on the EV2108DK-00A while the 10-pin 3mm x 3mm QFN package is available on the EV2108DQ-00A.
Product Features
• 2A Output Current
• Input Voltage Range of 2.6V to 6V
• Over 90 percent Efficiency
Product Applications
• SOHO Routers, PCMCIA Cards, Mini PCI
• Handheld Computers, PDAs
• Cell phones, Digital Still and Video Cameras
• Small LCD Displays
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP2108DQ-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Not For New Designs |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.6V |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.9V |
| Voltage - Output (Max) | 5V |
| Current - Output | 2A |
| Frequency - Switching | 740KHz |
| Synchronous Rectifier | YES |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-QFN (3x3) |
| Base Product Number | MP2108 |

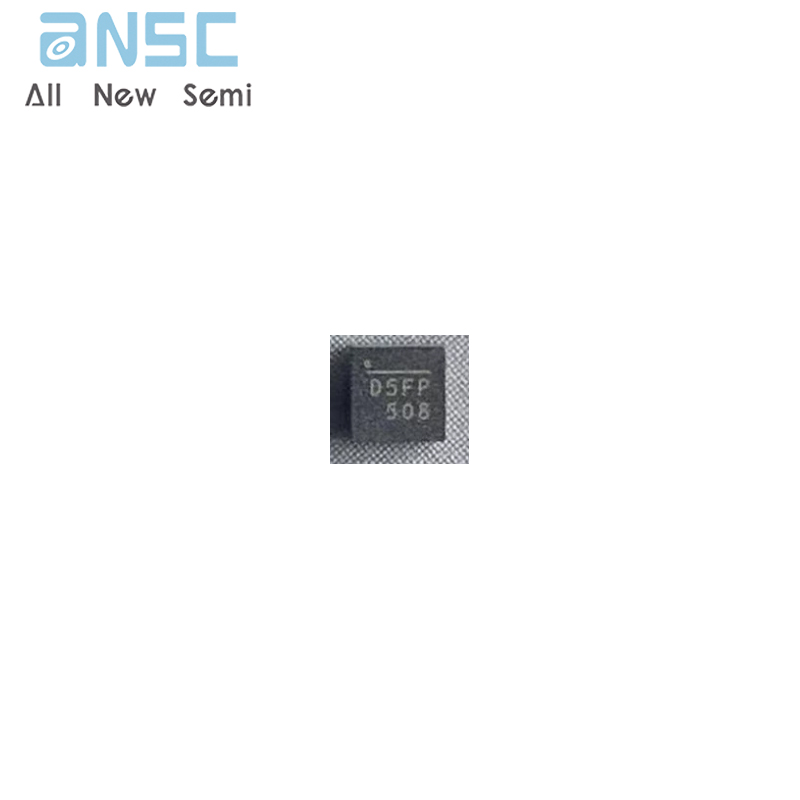

Product Photos
