Product Descriptions

The MP1530 combines a triple output step-up converter with linear regulators to provide a complete DC/DC solution. It is designed to power TFT LCD panels from a regulated 3.3V or 5V supply.

This device integrates a 1.4MHz fixed-frequency step-up converter with positive and negative linear regulators. The step-up converter switch node drives two charge pumps, which supply powers to their respective linear regulators. The positive and negative linear regulator inputs can withstand up to 38V and down to -20V, respectively.

A single on/off control enables all 3 outputs. The outputs are internally sequenced at startup for ease of use. An internal soft-start prevents input overload at startup. Cycle-by-cycle current limiting reduces component stress.

The MP1530 is available in a tiny 3x3mm, 16- pin QFN package or a 16-pin TSSOP package.

Product Features

 2.7 to 5.5V Operating Input Range

 2.8A Switch Current Limit

 3 Outputs In a Single Package

 Step-Up Converter up to 22V

 Positive 20mA Linear Regulator

 Negative 20mA Linear Regulator

 250mΩ Internal Power MOSFET Switch

 Up to 95 PERCENT Efficiency

 1.4MHz Fixed Frequency

 Internal Power-On Sequencing

 Adjustable Soft-Start/Fault Timer

 Cycle-by-Cycle Over Current Protection

 Under Voltage Lockout

 Ready Flag

 16-Pin, QFN (3x3mm) or TSSOP Packages

Product Applications

 TFT LCD Displays

 Portable DVD Players

 Tablet PCs

 Car Navigation Displays

Product Specification

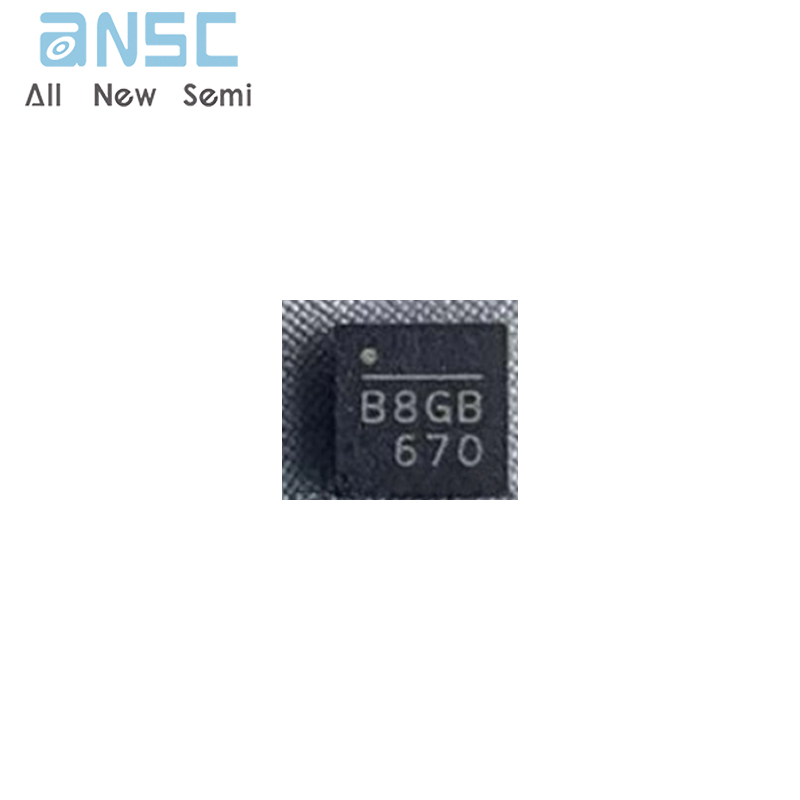

Product Photos

For more product information, please download the PDF
