Product Descriptions

The MP8902 is a low-noise, low-dropout linear regulator. It operates from 2.7V to 6.5V input voltage, and regulates the output voltage with 2 PERCENT accuracy at 2.5V, 3.3V, or from 1.25V to 5V.

The MP8902 can supply up to 250mA of load current. The MP8902 features thermal overload protection. It is available in a 2mm x 2mm 8-pin QFN package

Product Features

 Low 250mV Dropout at 250mA Output

 2 PERCENT Accurate Output Voltage

 Fixed Output Voltage Options of 2.5V or 3.3V

 Adjustable Output Voltage Option from 1.25V to 5V using an External Resistor Divider

 Up to 6.5V Input Voltage

 High PSRR

o 70dB at 1kHz

o 30dB at 1MHz

 Better Than 0.001%/mA Load Regulation

 Stable With Low-ESR Output Capacitor

 Low 125μA Ground Current

 Internal Thermal Protection

Product Applications

 802.11 PC Cards

 Mobile Handset PLL Power

 Audio Codec Power

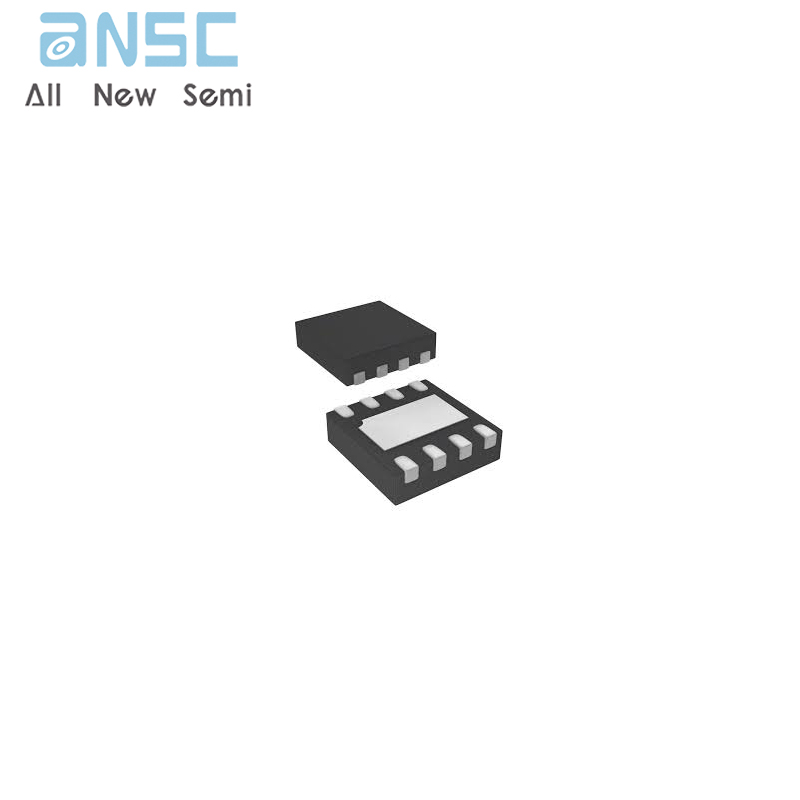

Product Photos

For more product information, please download the PDF
