Product Descriptions

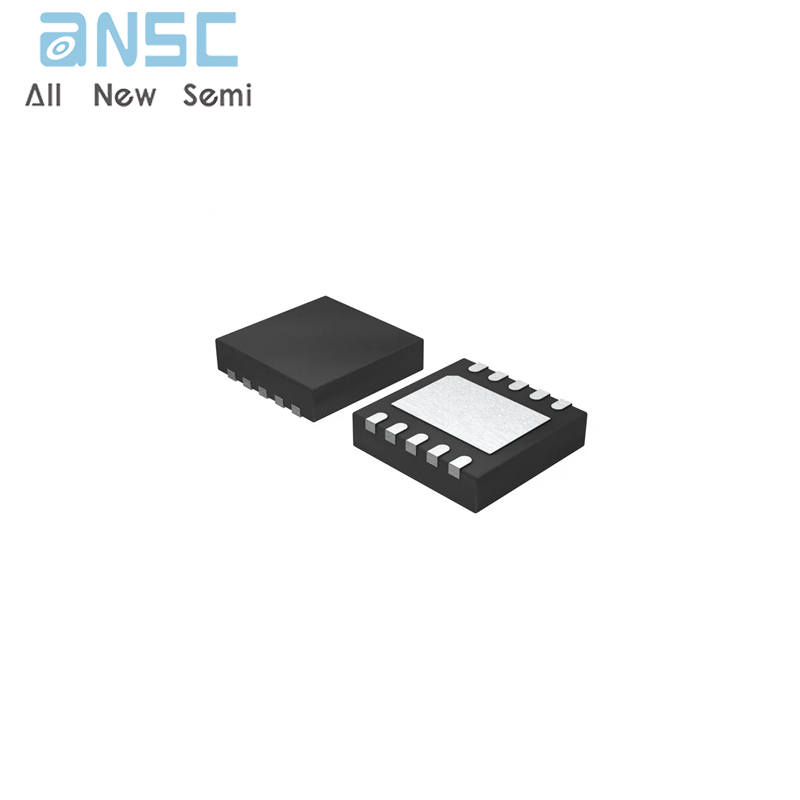

The MP7741 is a mono 10W Class D Audio Amplifier. It is one of MPS’ products of fully integrated audio amplifiers which dramatically reduce solution size by integrating the following:

z 250mΩ power MOSFETs

z Startup / Shutdown pop elimination

z Short circuit protection circuits

The MP7741 utilizes a single ended output structure capable of delivering 10W into 8Ω speakers. MPS Class D Audio Amplifiers exhibit the high fidelity of a Class A/B amplifier at high efficiencies. The circuit is based on the MPS’ proprietary variable frequency topology that delivers excellent linearity, fast response time and operates on a single power supply.

MP7741 features programmable VDD shutdown voltage by controlling the UVP node voltage. The default VDD shutdown voltage is 8.4V if the UVP pin is NC.

Product Features

• 10W Output at VDD = 24V into a 8Ω load

• THD+N = 0.02 PERCENT at 1W, 8Ω

• 94 PERCENT Efficiency at 10W & VDD=24V

• Low Noise (103µV Typical)

• Switching Frequency Up to 1MHz

• 9.5V to 36V Operation from a Single Supply

• Integrated Startup and Shutdown Pop Elimination Circuit

• Programmable UVP

• Thermal and Short Circuit Protection

• Integrated Power FETs

• Available in 10-Pin QFN3x3 Package

Product Applications

• Portable Docking Stations

• Surround Sound DVD Systems

• Televisions

• Flat Panel Monitors

• Multimedia Computers

• Home Stereo Systems

Product Specification

Product Photos

For more product information, please download the PDF
