Product Descriptions
The MP3302 is a step-up converter designed for driving arrays of WLEDS from a single cell Lithium Ion battery. The MP3302 uses current mode, fixed frequency architecture to regulate the LED current, which is measured through an external current sense resistor. Its low 200mV feedback voltage reduces power loss and improves efficiency. The MP3302 is turned off if an over-voltage condition is present due to an open circuit condition.
The MP3302 includes under-voltage lockout, current limiting and thermal overload protection preventing damage in the event of an output overload.
The MP3302 is available in small 5-pin TSOT23 and 8-pin QFN (2mm x 3mm) packages.
Product Features
• Internal Power MOSFET
• Drives up to 10 Series White LEDs
• Up to 87 PERCENT Efficiency
• Single Wire Dimming Control
• 1.3MHz Fixed Switching Frequency
• Open Load Shutdown
• Low 200mV Feedback Voltage
• UVLO, Thermal Shutdown
• Internal 1.3A Current Limit
• Available in TSOT23-5 and 2mm x 3mm QFN8 Packages
Product Applications
• 5” ~ 7” LCD Panels
• Handheld Computers and PDAs
• Digital Still Cameras
• Small LCD Displays
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MP3302DD-LF-Z |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Manufacturer | |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 6V |
| Voltage - Output | 36V |
| Current - Output / Channel | 1.33A(Switch) |
| Frequency | 1.3MHz |
| Dimming | Single-Wire |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TFDFN Exposed Pad |
| Supplier Device Package | 8-QFN (2x3) |
| Base Product Number | MP3302 |

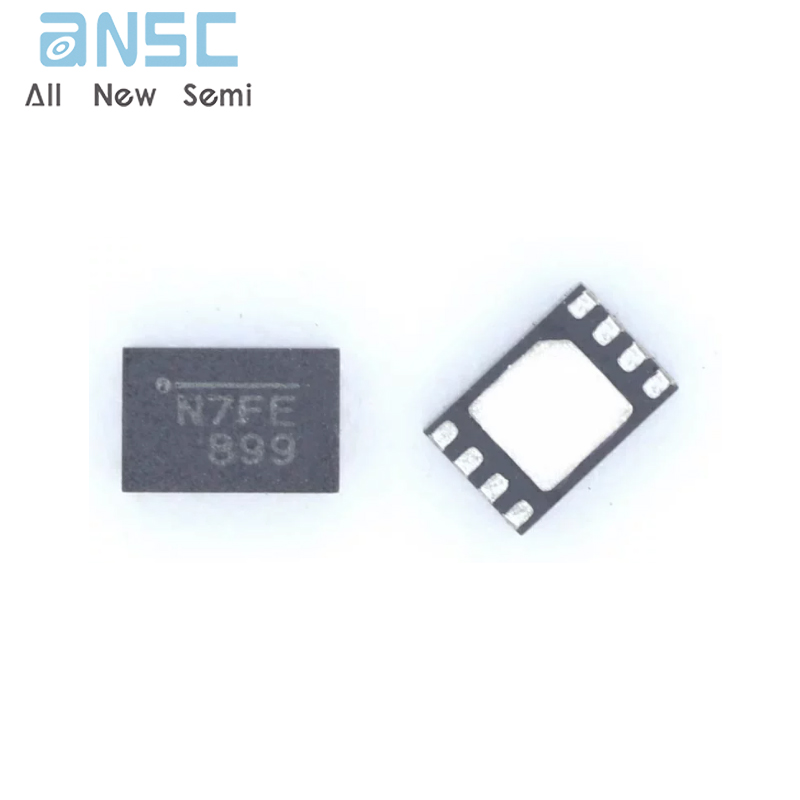

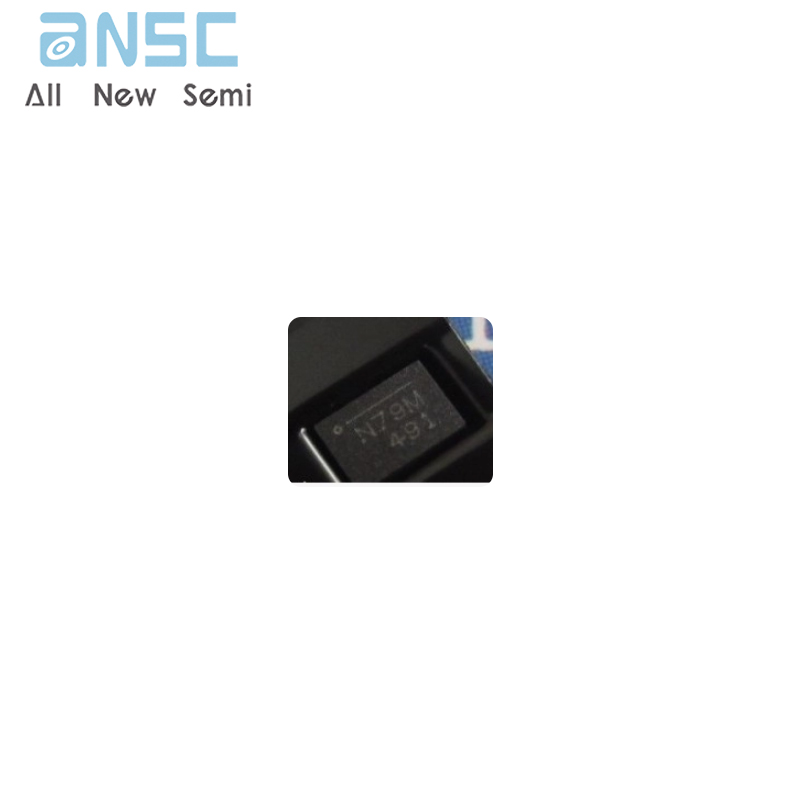

Product Photos
For more product information, please download the PDF
