Product Descriptions

The R3112x Series are CMOS-based voltage detector ICs with high detector threshold accuracy and ultra-low supply current, which can be operated at an extremely low voltage and is used for system reset as an example.

Each of these ICs consists of a voltage reference unit, a comparator, resistor net for detector threshold setting, an output driver, a hysteresis circuit, and an output delay circuit. The detector threshold is fixed with high accuracy internally and does not require any adjustment. Two output types, Nch open drain type and CMOS type are available.

Three types of packages, SOT-23-5, small SC-82AB, SC-88A and ultra-small SON1612-6 can be selected so that high density mounting on boards is possible.

Product Features

 Built-in Output Delay Circuit ............................................... Typ. 100ms with an external capacitor: 0.022F

 Supply Current ................................................................... Typ. 0.5uA (R3112x27xA/C, VDD=2.6V)

 Operating Voltage .............................................................. 0.7 to 6.0V (Topt=25°C)

 Detector Threshold............................................................. 0.9V to 5.0V (0.1V steps)

 Detector Threshold Accuracy ............................................. ±2.0 percent

 Temperature-Drift Coefficient of Detector Threshold ............ Typ. ±100ppm/°C

 Output Types ...................................................................... Nch Open Drain and CMOS

 Packages ........................................................................... SON1612-6, SC-82AB, SC-88A, SOT-23-5

Product Aoolications

 CPU and Logic Circuit Reset

 Battery Checker

 Window Comparator

 Wave Shaping Circuit

 Battery Back-up Circuit

 Power Failure Detector

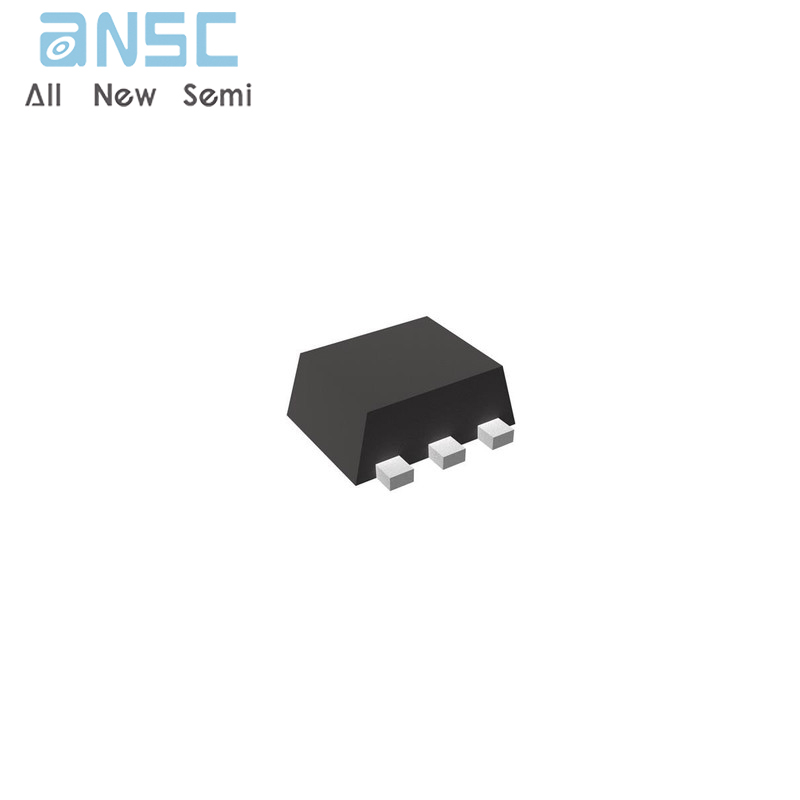

Product Photos

For more product information, please download the PDF
