Product Descriptions
BD48xxx and BD49xxx series are highly
accurate, low-current Voltage Detector IC series. The
family includes BD48xxx devices with N-channel open
drain output and BD49xxx devices with CMOS output.
The devices are available for specific detection voltages
ranging from 2.3V to 6.0V in increments of 0.1V.
Product Features
◼ High accuracy detection
◼ Ultra-low current consumption
◼ Two output types (Nch open drain and CMOS output)
◼ Wide Operating temperature range
◼ Very small and low height package
◼ Package SSOP5 is similar to SOT-23-5 (JEDEC)
◼ Package SSOP3 is similar to SOT-23-3 (JEDEC)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BD4940FVE-TR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Supervisors | |
| Manufacturer | - |
| Series | BD49xxx |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Type | Voltage Detector |
| Number of Voltages Monitored | 1 |
| Voltage - Threshold | 4V |
| Output | Push-Pull, Totem Pole |
| Reset | Active Low |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-665 |
| Supplier Device Package | 5-VSOF |
| Base Product Number | BD4940 |

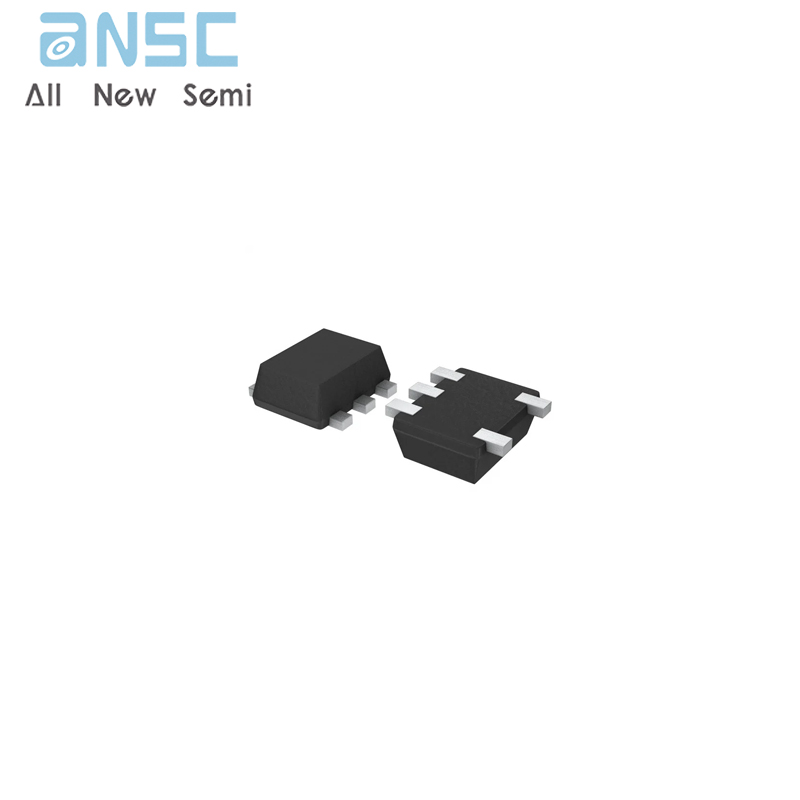

Product Photos
For more product information, please download the PDF
