Product Descriptions
The BD9060HFP-C BD9060F-C are high-accuracy frequency-flexible step-down switching regulators with built-in POWER MOS FET which can withstand high pressure.The operational frequency is freely configurable with external resistance. It features a wide input voltage range (5V to 35V) and a high frequency accuracy of +5 percent (f=200kHz to 500kHz). Furthermore, an external synchronization input pin enables synchronous operation with external clock. The output capacitor corresponds to the ceramic capacitor.
Product Features
Minimal external components
P-ch POWER MOS FET included in the package
Low dropout:100 percent ON duty cycle
External synchronization enabled
Soft start function: soft start time fixed to 2.7ms (Typ)
Built-in overcurrent protection circuit
Built-in thermal shutdown protection circuit
Product Applications
Battery-powered in-vehicle unit (Cluster, Car multimedia,etc.), communication such as ETC, all fields of industrial equipment, Flat TV, Printer, DVD, AV, OA
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BD9060F-CE2 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 5V |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 35V |
| Current - Output | 2A |
| Frequency - Switching | 50kHz ~ 500kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | BD9060 |

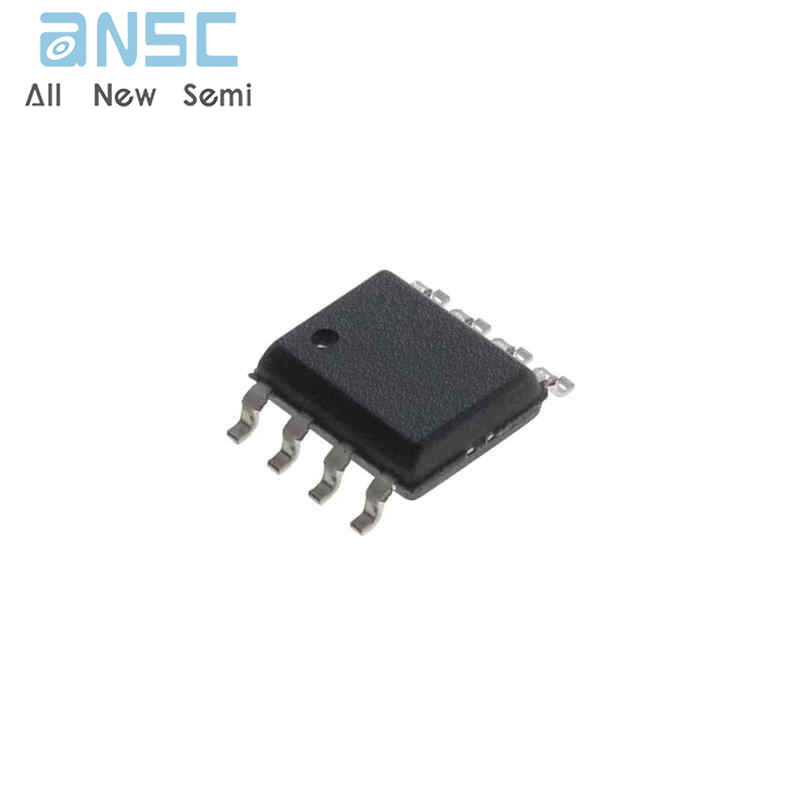

Product Photos
For more product information, please download the PDF
