Product Features
■ 90 mΩ high-side MOSFET switch
■ 500 mA continuous current per channel
■ Thermal and short-circuit protection with overcurrent logic output
■ Operating range from 2.7 to 5.5 V
■ CMOS- and TTL-compatible enable inputs
■ 2.5 ms typical rise time
■ Undervoltage lock out
■ 10 µA maximum standby supply current
■ Ambient temperature range, 0 °C to 85 °C
■ 2 kV ESD protection
■ Fault-blanking
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ST2041BDR |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | 80mOhm |
| Input Type | Non-Inverting |
| Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | ST2041 |

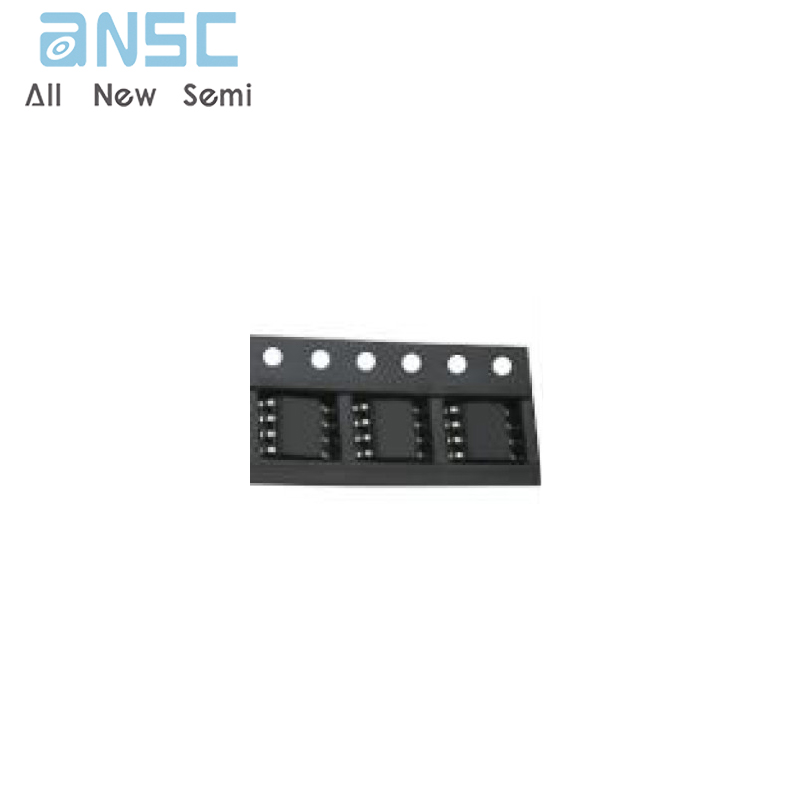

Product Photos
