Product Descriptions
The TS482 is a dual audio power amplifier able to drive a 16 or 32Ω stereo headset down to low voltages
It is delivering up to 100mW per channel (into 16Ω loads) of continuous average power with 0.1 PERCENT THD+N from a 5V power supply.
The unity gain stable TS482 can be configured by external gain-setting resistors.
Product Features
■ Operating from Vcc=2V to 5.5V
■ 100mW into 16Ω at 5V
■ 38mW into 16Ω at 3.3V
■ 11.5mW into 16Ω at 2V
■ Switch ON/OFF click reduction circuitry
■ High power supply rejection ratio: 85dB at 5V
■ High signal-to-noise ratio: 110dB(A) at 5V
■ High crosstalk immunity: 100dB (F=1kHz)
■ Rail-to-rail input and output
■ Unity-gain stable
■ Available in SO-8, MiniSO-8 & DFN8
Product Applications
■ Stereo headphone amplifier
■ Optical storage
■ Computer motherboard
■ PDA, organizers & notebook computers
■ High-end TV, set-top box, DVD players
■ Sound cards
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TS482IDT |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Class AB |
| Output Type | Headphones, 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 107mW x 2 @ 16Ohm |
| Voltage - Supply | 2V ~ 5.5V |
| Features | Depop |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | TS482 |

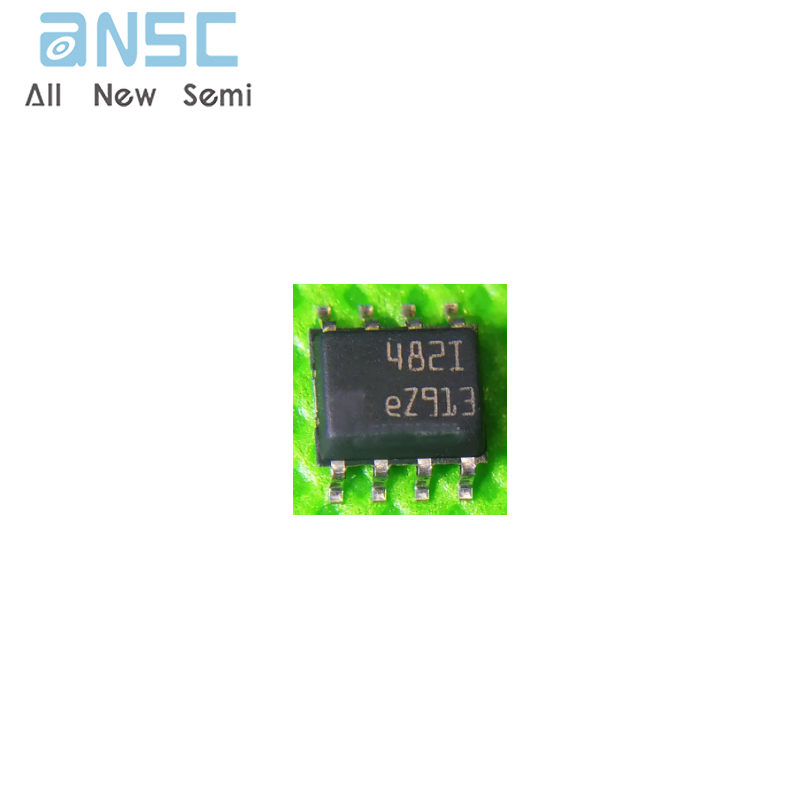

Product Photos
