Product Descriptions
The SE2432L is a high performance, fully integrated RF Front-End Module (FEM) designed for ZigBee®/Smart Energy applications.
The SE2432L is designed for ease of use and maximum flexibility. The device provides integrated and fully matched input baluns, an integrated inter-stage matching and harmonic filter, and digital controls compatible with 1.6 to 3.6 V CMOS levels.
The RF blocks operate over a wide supply voltage range from 2.0 V to 3.6 V that allows the SE2432L to be used in battery powered applications over a wide spectrum of the battery discharge curve.
The SE2432L is provided in a small, 24-pin, 3 x 4 mm Quad Flat No-Lead (QFN) package.
Product Features
Integrated PA with up to +24 dBm output power
Integrated LNA with programmable bypass
Integrated antenna switching with transmit and receive diversity function
Low NF: 2 dB typical
Differential transmit/receive interface with integrated baluns
Fast switch on/off time: <800 ns
Supply range: 2.0 V to 3.6 V
Sleep mode current: 0.05 μA typical
Small QFN (24-pin, 3 x 4 mm) package (MSL1, 260 °C per JEDEC-J-STD-020)
Product Applications
Smart meters
In-home appliances
Smart thermostats
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SE2432L-R |
| Category | RF and Wireless |
| RF Front End (LNA + PA) | |
| Manufacturer | - |
| Series | SiGe |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| RF Type | Zigbee® |
| Frequency | 2.4GHz ~ 2.483GHz |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (3x4) |
| Base Product Number | SE2432 |

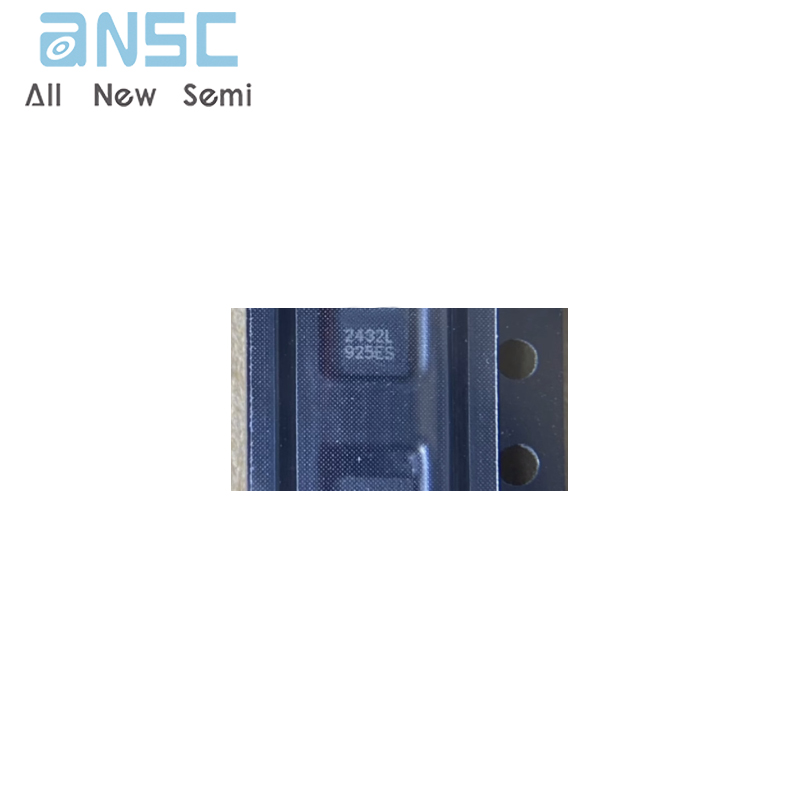

Product Photos
For more product information, please download the PDF
