Product Descriptions
The AP2142 and AP2152 are integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB 2.0 and available with both polarities of Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time and under-voltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components
All devices are available in SO-8 and MSOP-8EP packages.
Product Features
• Dual USB Port Power Switches
• Over-Current and Thermal Protection
• 0.8A Accurate Current Limiting
• Reverse Current Blocking
• 115mΩ On-Resistance
• Input Voltage Range: 2.7V – 5.5V
• 0.6ms Typical Rise Time
• Very Low Shutdown Current: 1µA (max)
• Fault Report (FLG) with Blanking Time (7ms typ)
• ESD protection: 4.5KV HBM, 350V MM
• Active High (AP2152) or Active Low (AP2142) enable
• Ambient Temperature Range -40°C to +85°C
• SO-8 and MSOP-8EP (Exposed Pad): Available in “Green”Molding Compound (No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
• UL Recognized, File Number E322375
• IEC60950-1 CB Scheme Certified
Product Applications
• Consumer Electronics – LCD TV & Monitor, Game Machines
• Communications – Set-Top-Box, GPS, Smartphone
• Computing – Laptop, Desktop, Servers, Printers, Docking Station,HUB
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AP2152SG-13 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Switch Type | USB Switch |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:2 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 500mA |
| Rds On (Typ) | 120mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOP |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | AP2152 |

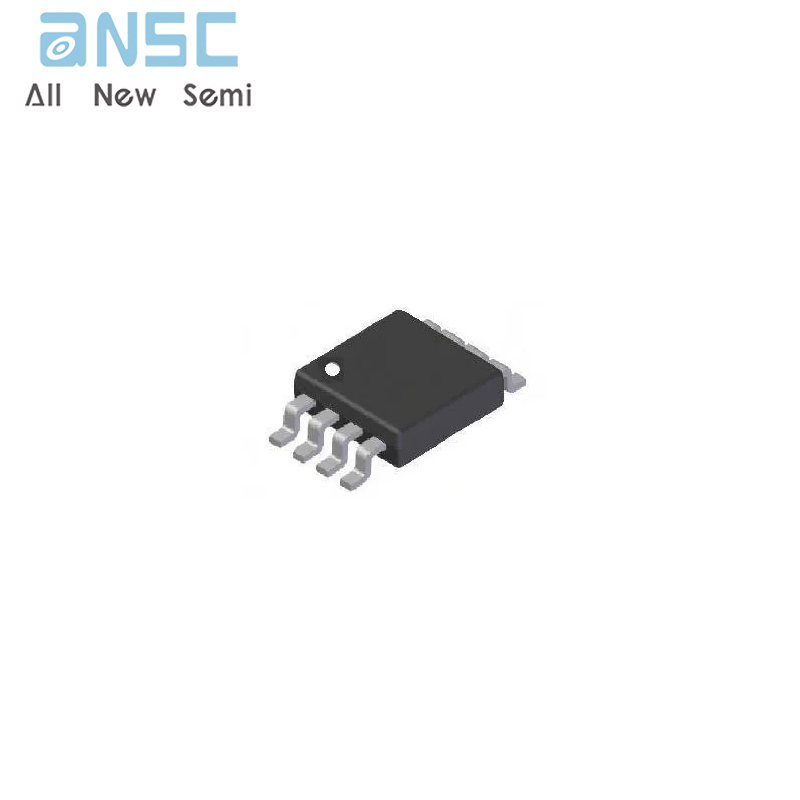

Product Photos
For more product information, please download the PDF
