Product Descriptions

The TPS20xxC and TPS20xxC-2 dual power distribution switch family is intended for applications such as USB where heavy capacitive loads and short-circuits may be encountered. This family offers multiple devices with fixed current-limit thresholds for applications between 0.5 A and 2 A.

The TPS20xxC and TPS20xxC-2 dual family limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current-limit threshold. This provides a predictable fault current under all conditions. The fast overcurrent response time eases the burden on the main 5 V supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turnon and turnoff.

Product Features

• Dual Power Switch Family

• Rated Currents of 0.5 A, 1 A, 1.5 A, 2 A

• Accurate ±20 percent Current Limit Tolerance

• Fast Overcurrent Response – 2 µs (Typical)

• 70-mΩ (Typical) High-Side N-Channel MOSFET

• Operating Range: 4.5 V to 5.5 V

• Deglitched Fault Reporting (FLTx)

• Selected Parts With (TPS20xxC) and Without (TPS20xxC-2) Output Discharge

• Reverse Current Blocking

• Built-in Softstart

• Ambient Temperature Range: –40°C to 85°C

Product Applications

• USB Ports or Hubs, Laptops, Desktops

• High-Definition Digital TVs

• Set Top Boxes

• Short Circuit Protection

Product Specification

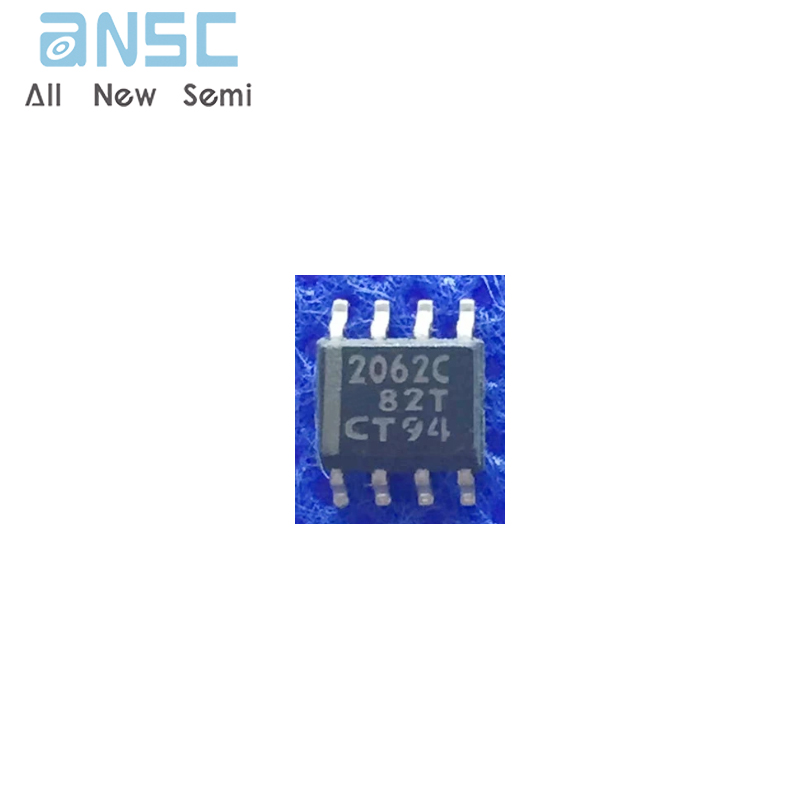

Product Photos

For more product information, please download the PDF
