Product Descriptions
The MS-012 packaged Fixed Voltage Enhanced Single Port Series consists of SIDACtor® components designed to protect sensitive SLICs (Subscriber Line Interface Circuit) from damaging overvoltage transients.
The series provides single port protection using a fixed voltage switching device for negative surges. Positive surges are routed though enhanced switching diodes to a ground reference. The series is also pin-to-pin compatible to industry standard programmable SO-8 SLIC protectors.
Product Features
• Integrated fast switching diodes for positive voltage surges
• RoHS Compliant and LeadFree
• Single port protection in one package
• Low voltage overshoot
• Low on-state voltage
• Pin-to-pin SO-8 compatible footprint
• Fails short circuit when surged in excess of ratings
• Does not degrade surge capability after multiple surge events within limit
Product Applications
• TIA-968-A
• TIA-968-B
• ITU K.20/21 Enhanced Level
• ITU K.20/21 Basic Level
• GR 1089 Inter-building*
• GR 1089 Intra-building*
• IEC 61000-4-5 2nd edition
• YD/T 1082
• YD/T 993
• YD/T 950
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-P1301DF-1E |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| Mixed Technology | |
| Manufacturer | - |
| Series | SIDACtor® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Voltage - Clamping | 120V |
| Technology | Mixed Technology |
| Number of Circuits | 1 |
| Applications | SLIC |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | MS-012 |

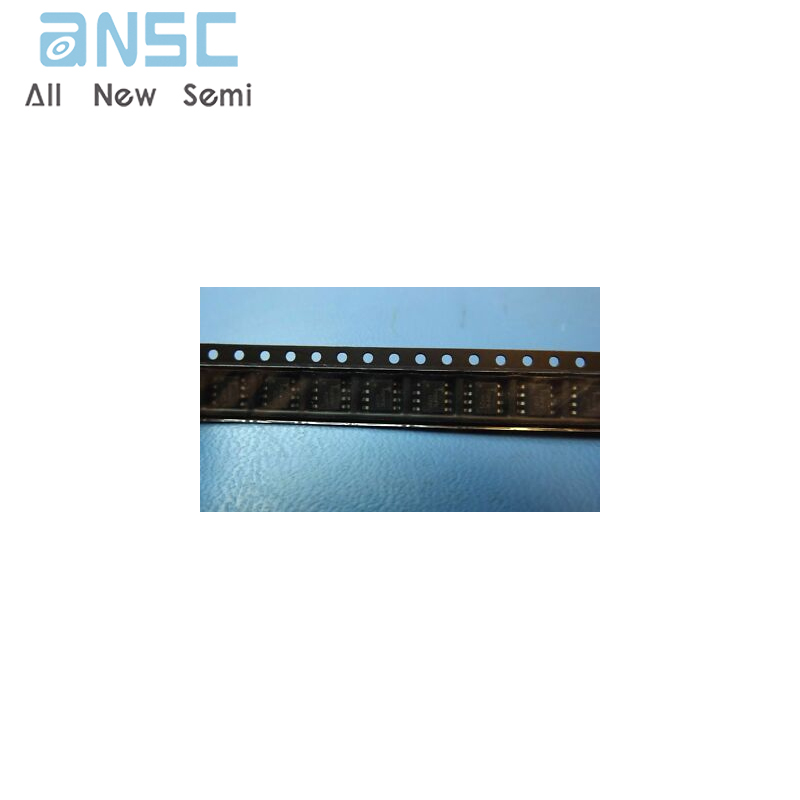

Product Photos
