Product Features

„ SPI-compatible serial bus interface

„ 108 MHz (maximum) clock frequency

„ 2.7 V to 3.6 V single supply voltage

„ Supports legacy SPI protocol and new Quad I/O or Dual I/O SPI protocol

„ Quad/Dual I/O instructions resulting in an equivalent clock frequency up to 432 MHz:

„ XIP mode for all three protocols

– Configurable via volatile or non-volatile registers (enabling the memory to work in XiP mode directly after power on)

„ Program/Erase suspend instructions

„ Continuous read of entire memory via single instruction:

– Fast Read

– Quad or Dual Output Fast Read

– Quad or Dual I/O Fast Read

„ Flexible to fit application:

– Configurable number of dummy cycles

– Output buffer configurable

– Reset function available upon customer request

„ 64-byte user-lockable, one-time programmable (OTP) area

„ Erase capability

– Subsector (4-Kbyte) granularity on theentire memory array.

– Sector (64-Kbyte) granularity

„ Write protections

– Software write protection applicable to every 64-Kbyte sector (volatile lock bit)

– Hardware write protection: protected area size defined by five non-volatile bits (BP0, BP1, BP2, and TB bit)

– Additional smart protections available upon customer request

„ Electronic signature

– JEDEC standard two-byte signature (BA16h)

– Additional 2 Extended Device ID (EDID) bytes to identify device factory options

– Unique ID code (UID) with 14 bytes readonly, factory programmed

„ More than 100,000 program/erase cycles persector

„ More than 20 years data retention

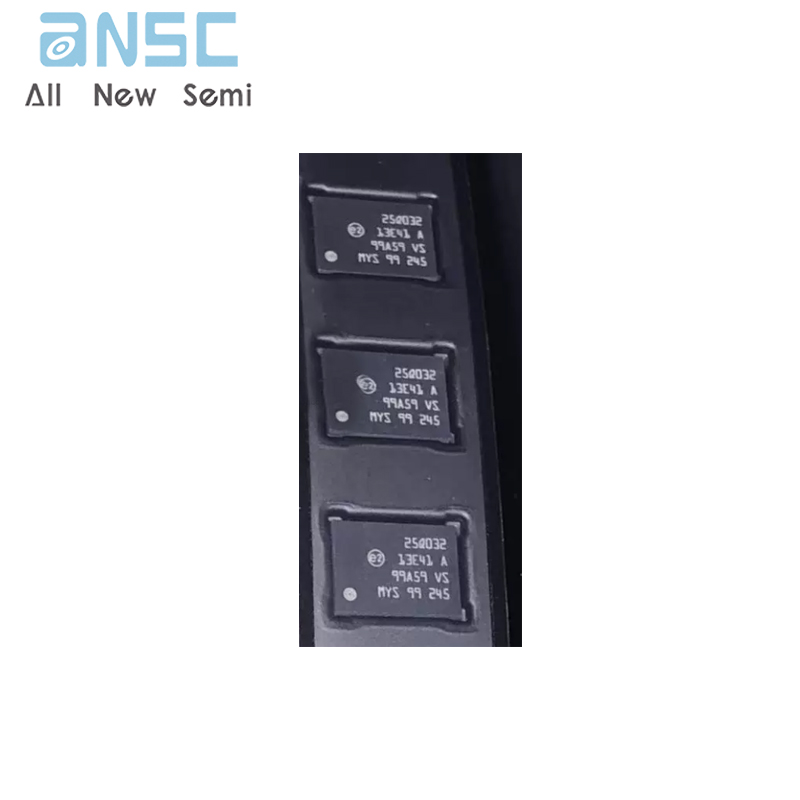

Product Photos
