Product Descriptions
These ‘61089 parts are all dual forward-conducting buffered p-gate thyristor (SCR) overvoltage protectors. They are designed to protect monolithic SLICs (Subscriber Line Interface Circuits) against overvoltages on the telephone line caused by lightning, a.c. power contact and induction. The ‘61089 limits voltages that exceed the SLIC supply rail voltage. The ‘61089 parameters are specified to allow equipment compliance with Telcordia (formally Bellcore) GR-1089-CORE and ITU-T recommendations K.20, K.21 and K.45.
The SLIC line driver section is typically powered from 0 V (ground) and a negative (battery) voltage. The protector gate is connected to this negative supply. This references the protection (clipping) voltage to the negative supply voltage. The protection voltage will then track the negative supply voltage and the overvoltage stress on the SLIC is minimized.
Positive overvoltages are clipped to ground by diode forward conduction. Negative overvoltages are initially clipped close to the SLIC negative supply rail value. If sufficient current is available from the overvoltage, then the protector SCR will switch into a low voltage on-state condition. As the overvoltage subsides the high holding current of ‘61089 SCR helps prevent d.c. latchup.
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TISP61089ADR-S |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| Thyristors | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Voltage - Breakover | 64V |
| Voltage - Off State | 120V |
| Current - Peak Pulse(10/1000µs) | 30 A |
| Current - Hold (Ih) | 150 mA |
| Number of Elements | 2 |
| Capacitance | 100pF |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | TISP610 |

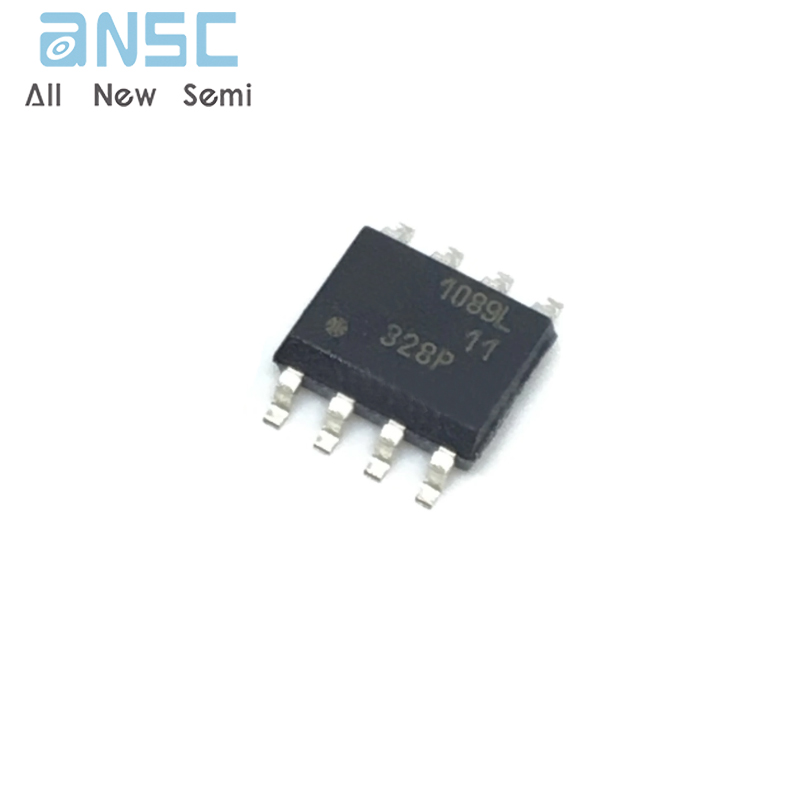

Product Photos
