Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-G4802CG |
| Category | Transformers |
| Pulse Transformers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Transformer Type | LAN 10/100/1000 Base-T |
| Inductance | 350µH |
| Turns Ratio - Primary:Secondary | 1CT:1CT |
| Mounting Type | Surface Mount |
| Size / Dimension | 1.114" L x 0.500" W (28.30mm x 12.70mm) |
| Height - Seated (Max) | 0.295" (7.50mm) |
| Operating Temperature | 0°C ~ 70°C |

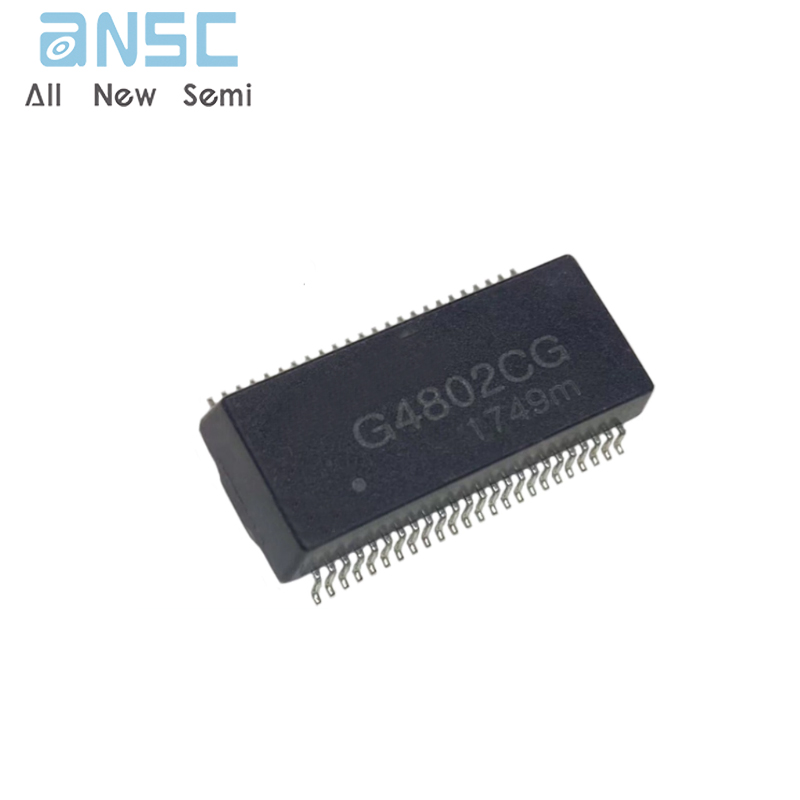

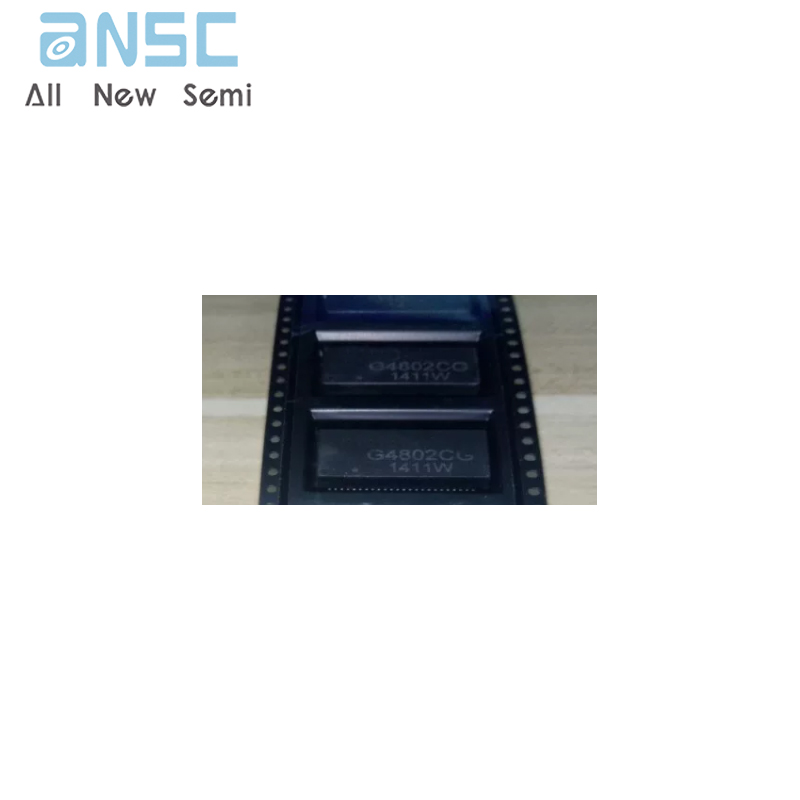

Product Photos
For more product information, please download the PDF
