Product Features

„ SPI bus compatible serial interface

„ 75 MHz (maximum) clock frequency

„ 2.7 V to 3.6 V single supply voltage

„ Dual input/output instructions resulting in an equivalent clock frequency of 150 MHz:

– Dual output fast read instruction

– Dual input fast program instruction

„ Whole memory continuously read by sending once a fast read or a dual output fast read instruction and an address

„ 64 Mbit Flash memory

– Uniform 4-Kbyte subsectors

– Uniform 64-Kbyte sectors

„ Additional 64-byte user-lockable, one-time programmable (OTP) area

„ Erase capability

– Subsector (4-Kbyte) granularity

– Sector (64-Kbyte) granularity

– Bulk erase (64 Mbits) in 68 s (typical)

„ Write protections

– Software write protection applicable to every 64-Kbyte sector (volatile lock bit)

– Hardware write protection: protected area size defined by three non-volatile bits (BP0, BP1 and BP2)

„ Deep power-down mode: 5 μA (typical)

„ Electronic signature

– JEDEC standard two-byte signature (7117h)

– Unique ID code (UID) with 16 bytes readonly, available upon customer request

„ More than 100 000 write cycles per sector

„ More than 20 years data retention

„ Packages

– RoHS compliant

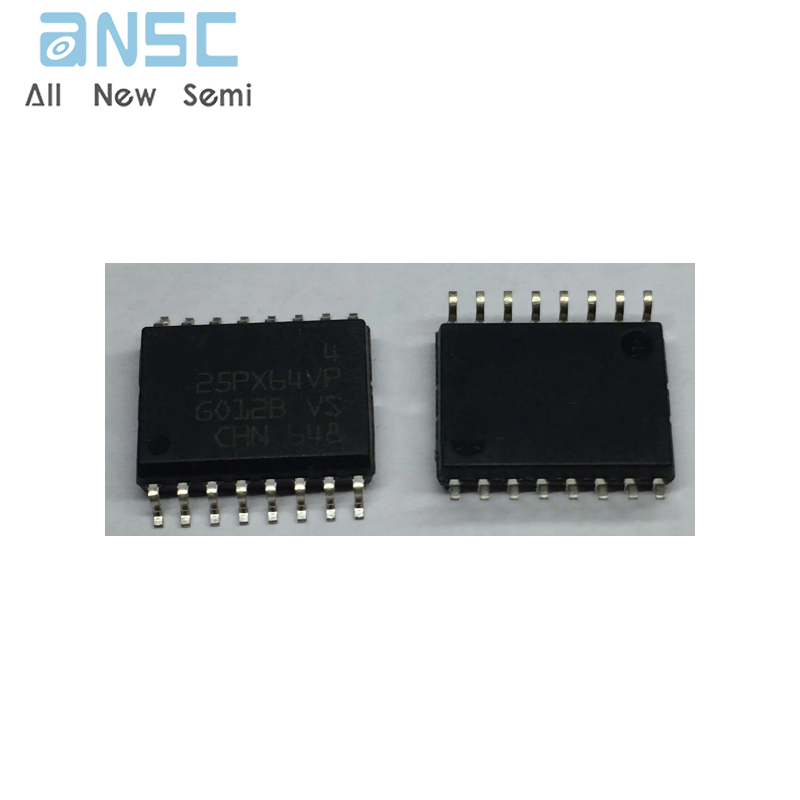

Product Photos

For more product information, please download the PDF
